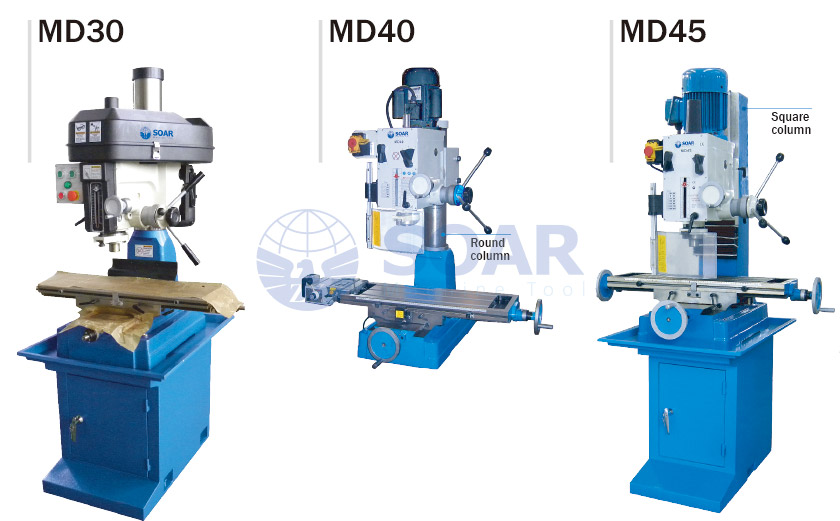

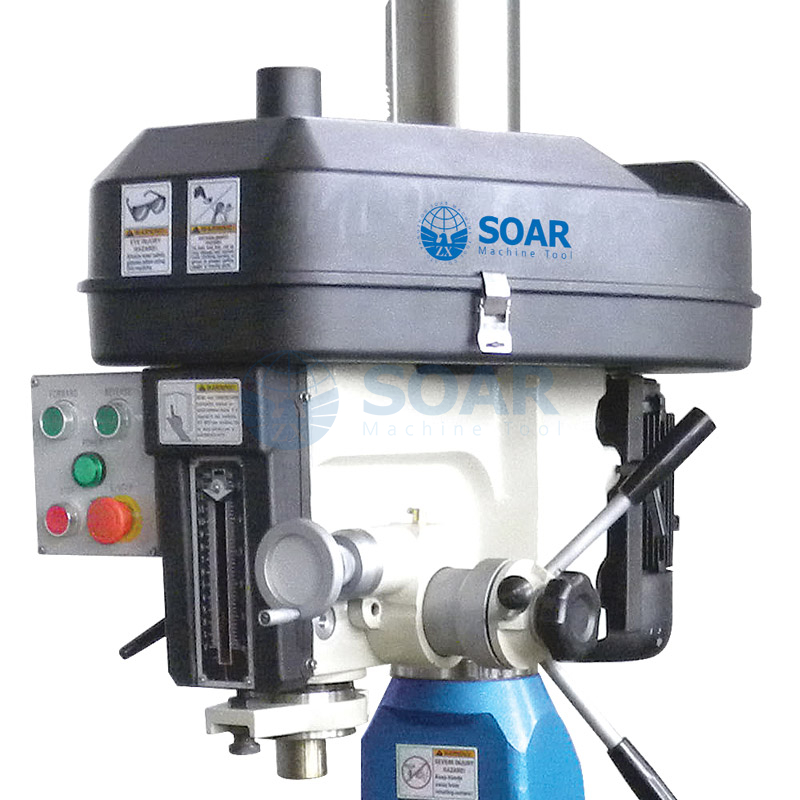

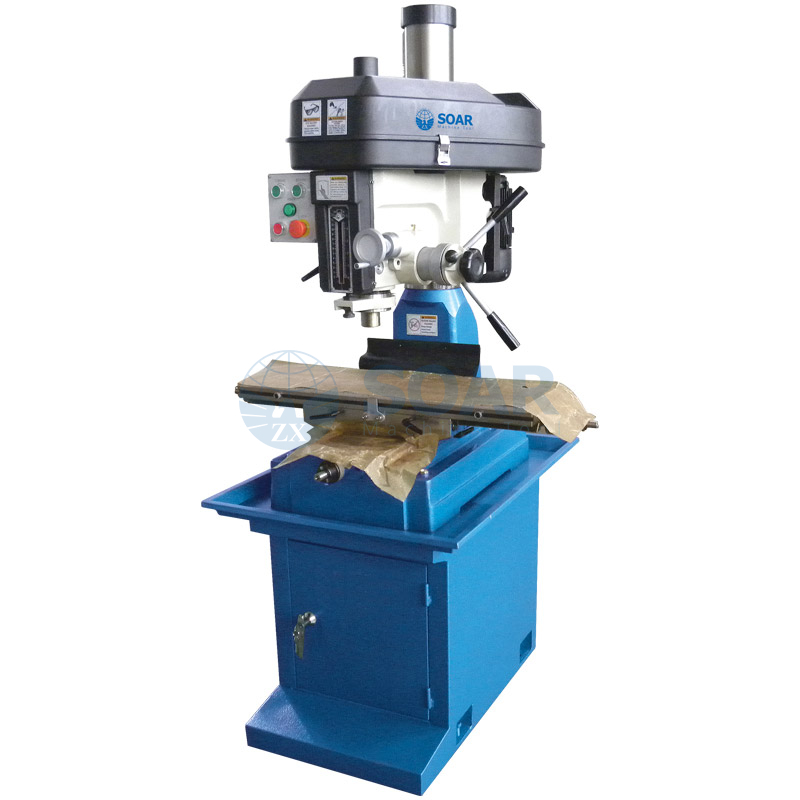

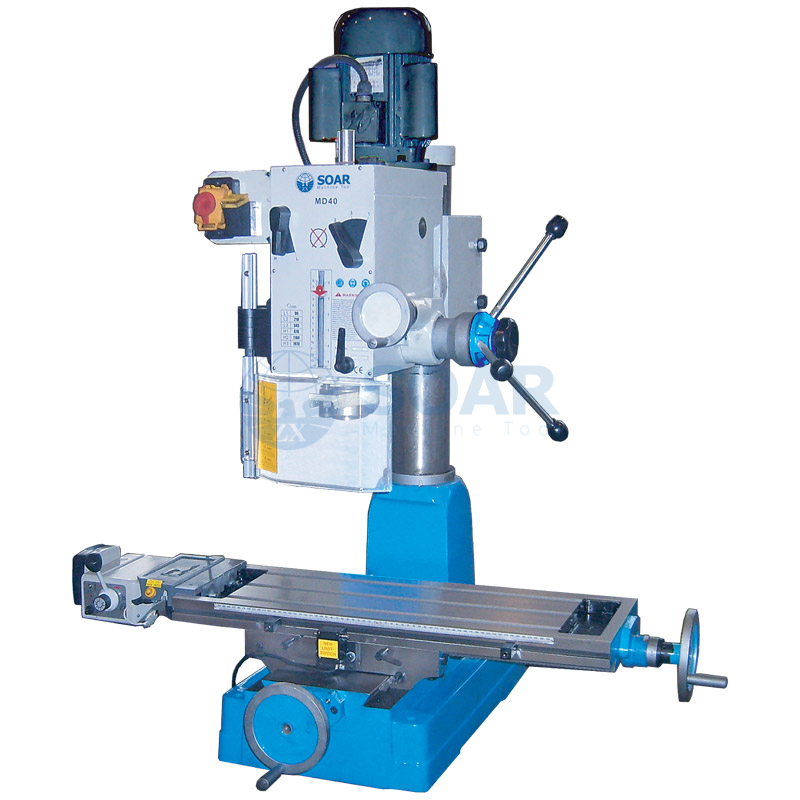

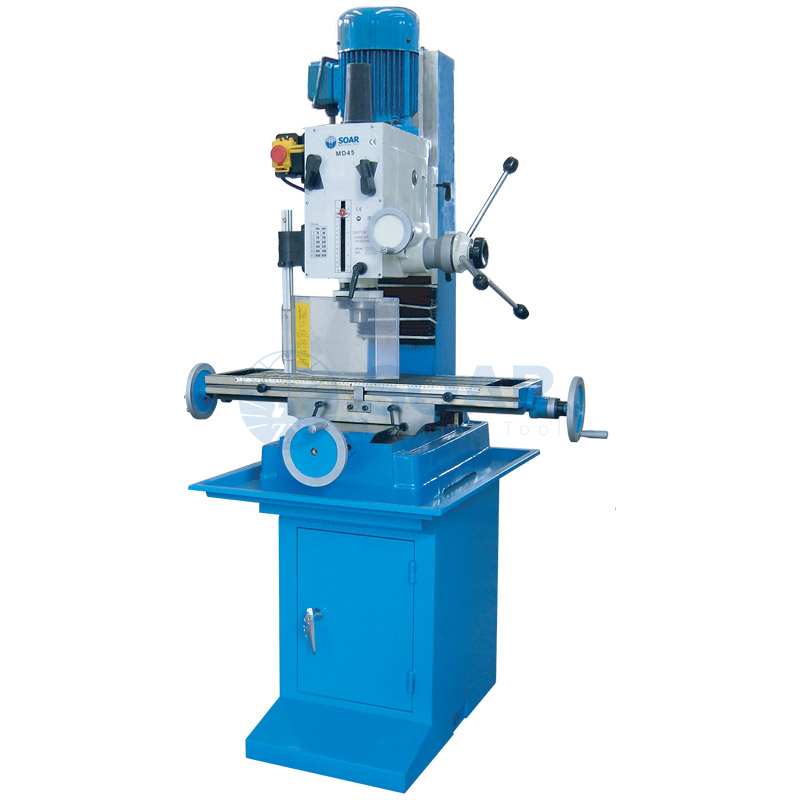

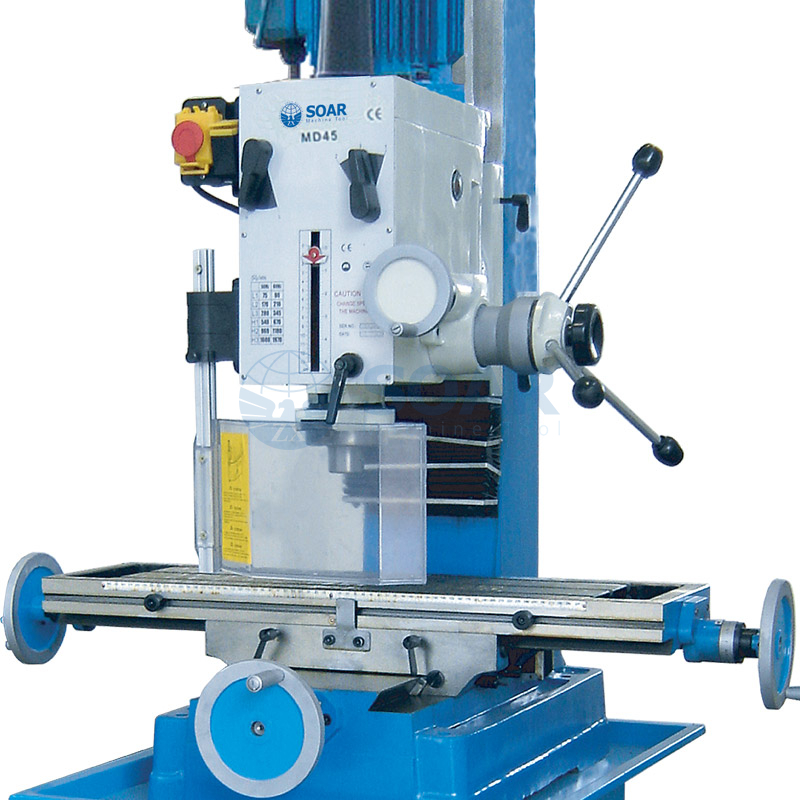

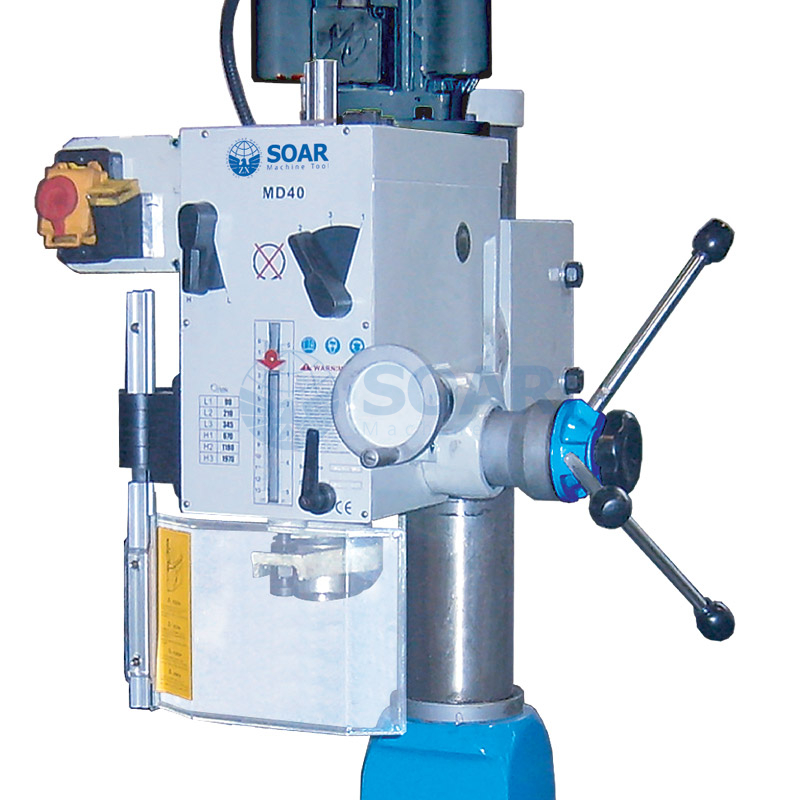

MD30/MD40/MD45
SOAR Machine
| Model No. | Unit | MD30 | MD40 | MD45 |
| max. drilling capacity | mm | iron: 35(1.38") steel: 28(1.10") | 40(1.57") | 45(1.77") |
| max. end milling capacity | mm | 20(0.79") | 32(1.26") | 36(1.42") |
| max. face milling capacity | mm | 76(2.99") | 80(3.15") | 80(3.15") |
| work table size | mm | 730×210(28.74"×8.27") | 800×240(31.50"×9.45") | 800×240(31.50"×9.45") |
| T-slot size | mm | 14(0.55") | 12(0.47") | 14(0.55") |
| cross travel | mm | 210(8.28") | 175(6.89") | 230(9.06") |
| longitudinal travel | mm | 500(1.97") | 500(1.97") | 560(22.04") |
| head stroke | mm | 300(11.81") | 300(11.81") | 300(11.81") |
| taper of spindle bore | MT3 or R8 | MT4 | MT4 or R8 or ISO30 | |
| spindle stroke | mm | 120(4.72") | 120(4.72") | 120(4.72") |
| max. distance spindle to table | mm | 440(17.32") | 470(18.50") | 460(18.11") |
| distance between spindle to column | mm | 198(7.80") | 270(10.62") | - |
| step of spindle speeds | steps | 12 | 6 | 6 |
| range of spindle speeds | rpm | 75-1600rpm | 75-1600rpm | 75-1600rpm |
| headstock tilted left & right | ° | ±45 | ±90 | ±90 |
| spindle box swivel degree | ° | 360 | 360 | - |
| motor | Kw | 1.5 1450rpm | 1.1 | 1.1 |
| packing size | mm | 950×760×1150 | 820×770×1140 | 820×760×1150 |
| N.W. | Kg | 300 | 310 | 320 |
| drill chuck | drawbar | arbor | toolbox & tools |
| keyless drill chuck | MBV100 milling vise | doulbe speed motor | tapping assembly |
| power feed | 58pc clamping kits | coolant system | halogen work lamp |
| digital readout | collet chuck | stand & tray |
| Model No. | Unit | MD30 | MD40 | MD45 |
| max. drilling capacity | mm | iron: 35(1.38") steel: 28(1.10") | 40(1.57") | 45(1.77") |
| max. end milling capacity | mm | 20(0.79") | 32(1.26") | 36(1.42") |
| max. face milling capacity | mm | 76(2.99") | 80(3.15") | 80(3.15") |
| work table size | mm | 730×210(28.74"×8.27") | 800×240(31.50"×9.45") | 800×240(31.50"×9.45") |
| T-slot size | mm | 14(0.55") | 12(0.47") | 14(0.55") |
| cross travel | mm | 210(8.28") | 175(6.89") | 230(9.06") |
| longitudinal travel | mm | 500(1.97") | 500(1.97") | 560(22.04") |
| head stroke | mm | 300(11.81") | 300(11.81") | 300(11.81") |
| taper of spindle bore | MT3 or R8 | MT4 | MT4 or R8 or ISO30 | |
| spindle stroke | mm | 120(4.72") | 120(4.72") | 120(4.72") |
| max. distance spindle to table | mm | 440(17.32") | 470(18.50") | 460(18.11") |
| distance between spindle to column | mm | 198(7.80") | 270(10.62") | - |
| step of spindle speeds | steps | 12 | 6 | 6 |
| range of spindle speeds | rpm | 75-1600rpm | 75-1600rpm | 75-1600rpm |
| headstock tilted left & right | ° | ±45 | ±90 | ±90 |
| spindle box swivel degree | ° | 360 | 360 | - |
| motor | Kw | 1.5 1450rpm | 1.1 | 1.1 |
| packing size | mm | 950×760×1150 | 820×770×1140 | 820×760×1150 |
| N.W. | Kg | 300 | 310 | 320 |
| drill chuck | drawbar | arbor | toolbox & tools |
| keyless drill chuck | MBV100 milling vise | doulbe speed motor | tapping assembly |
| power feed | 58pc clamping kits | coolant system | halogen work lamp |
| digital readout | collet chuck | stand & tray |
