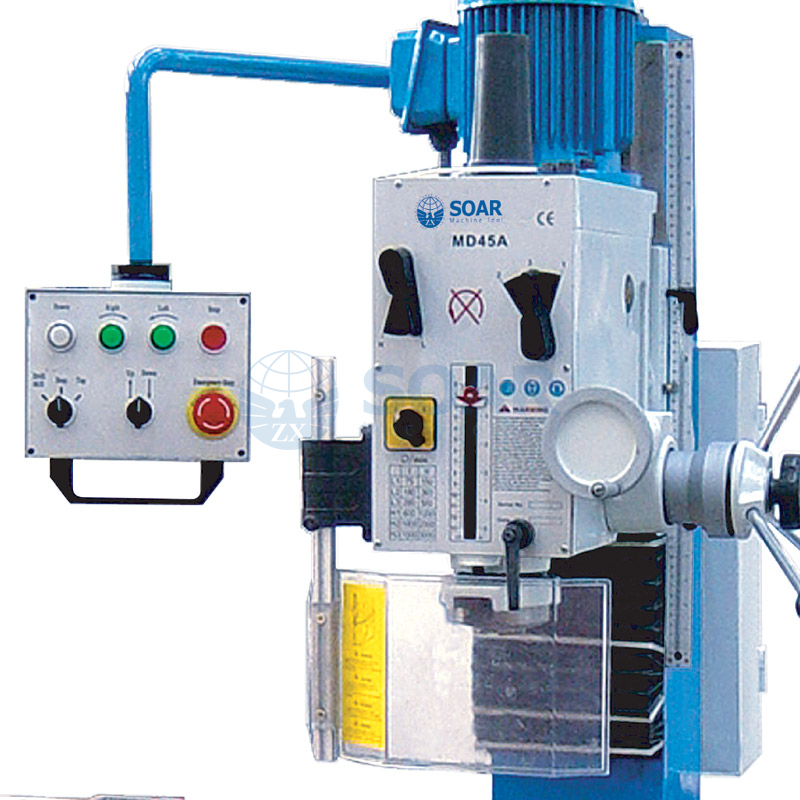

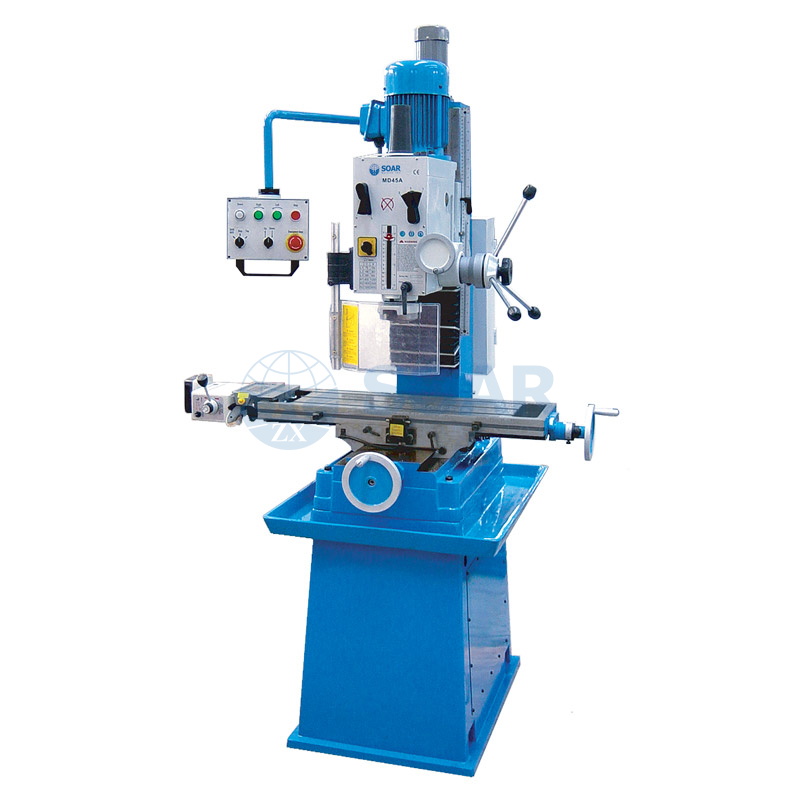

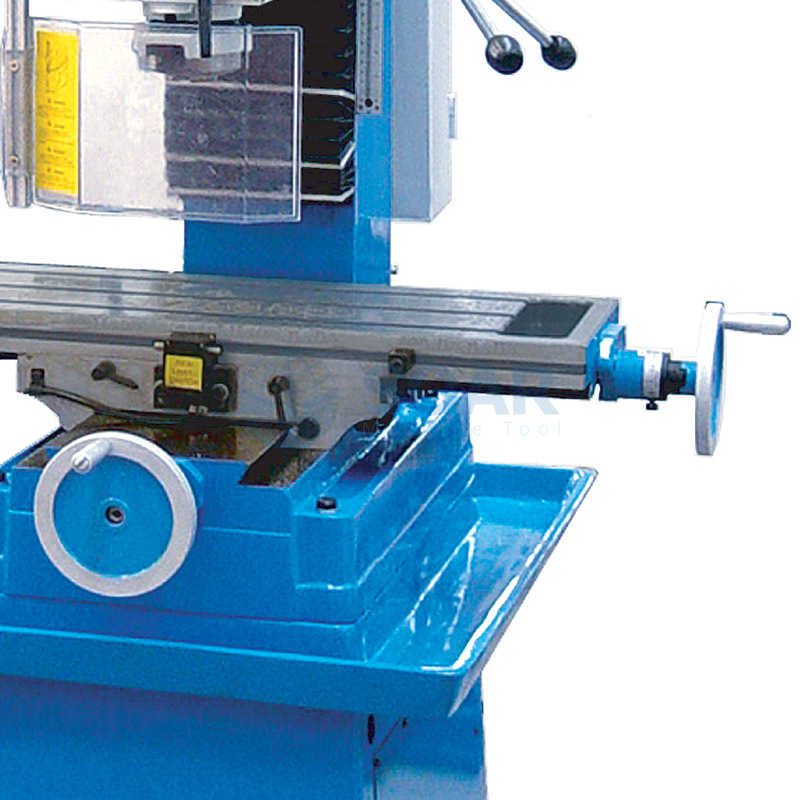

MD45A
SOAR Machine
| Model No. | Unit | MD45A |
| max. drilling capacity | mm | 45(1.77") |
| max. end milling capacity | mm | 36(1.42") |
| max. face milling capacity | mm | 80(3.15") |
| work table size | mm | 800×240(31.50"×9.45") |
| T-slot size | mm | 14(0.55") |
| cross travel | mm | 230(9.06") |
| longitudinal travel | mm | 560(22.05") |
| head stroke | mm | 300(11.81") |
| taper of spindle bore | MT4 of R8 or ISO30 | |
| spindle stroke | mm | 120(4.72") |
| max. distance spindle to table | mm | 470(18.50") |
| distance between spindle to column | mm | 260(10.24") |
| step of spindle speeds | steps | 12 |
| range of spindle speeds | rpm | 75-3200 |
| headstock tilted left & right | ° | ±9 |
| motor | Kw | 0.85/1.1 |
| packing size | mm | 1180×960×1400 |
| N.W. | Kg | 580 |

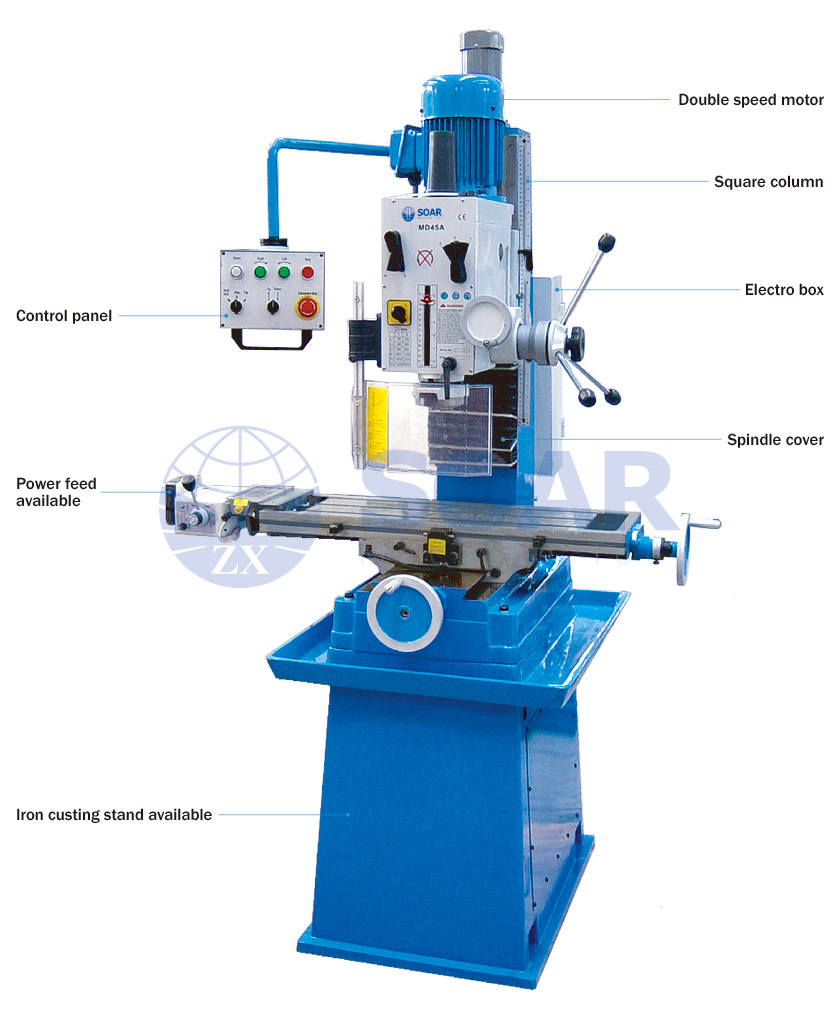

| drill chuck | drawbar | tapping assembly | double speed motor |
| toolbox & tools |
| keyless drill chuck | coolant system | MBV100 milling vise | 58pcs clamping kits |
| halogen work lamp | digital readout scale | collet chuck | iron casting stand |
| X-power feed |
