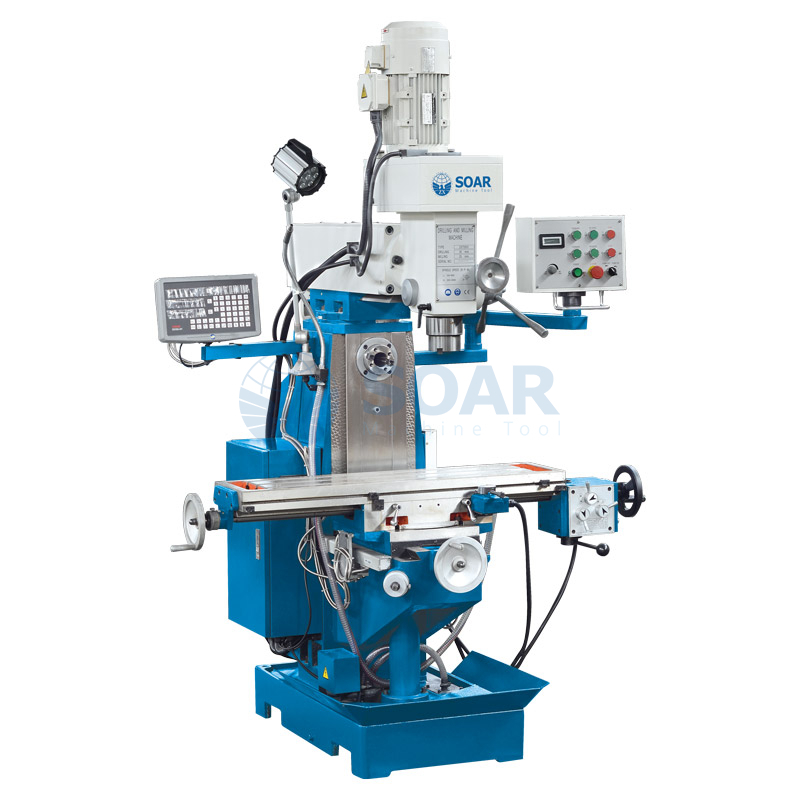

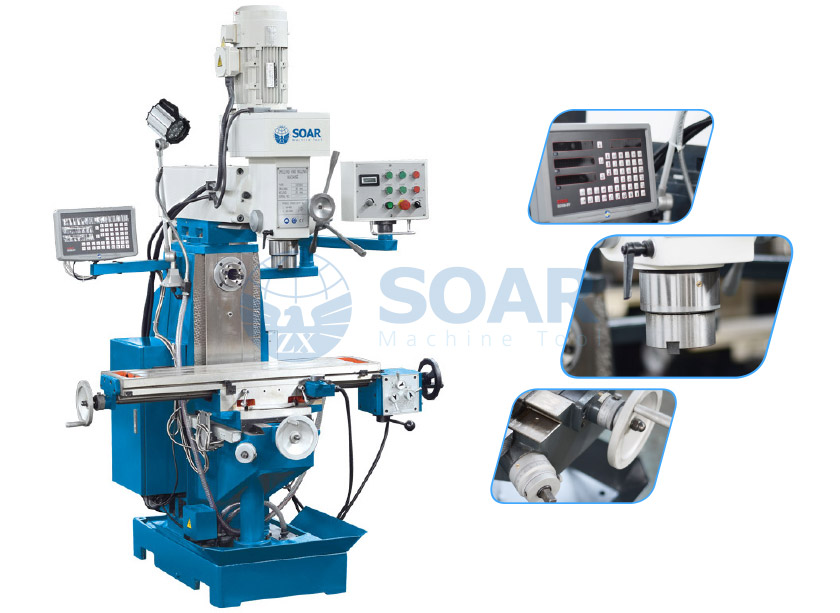

MDH60
SOAR Machine
· Z: X Axis auto feed, with tapping
· ZA: X/Y Axis auto feed, with tapping
· ZB: X/Y Axis auto feed, Up/Down by motor on Z Axis, with tapping
· ZS: 3 Axis auto feed, speed adjustable on Z Axis, work table can be rotary to 45, with tapping
| Model No. | Unit | MDH60Z/MDH60ZA/MDH60ZB/MDH60ZS |
| max. tapping dia | M16 | |
| max. drilling capacity | mm | 50 |
| max. end milling capacity | mm | 25 |
| max. face milling capacity | mm | 100 |
| work table size | mm | 1120×260 |
| T-slot size | mm | 14 |
| cross travel | mm | 230 |
| longitudinal travel | mm | 350 |
| taper of spindle bore | ISO40 | |
| spindle stroke | mm | 120 |
| distance between spindle to table | mm | 90-400 |
| range of spindle speed(vertical) | rpm | 110-1760 |
| range of spindle speed(horizontal) | rpm | 38-1310 |
| motor(vertical) | Kw | 0.85/1.5 |
| motor(horizontal) | Kw | 2.2 |
| packing size | mm | 1500×1280×2200 |
| N.W. | Kg | 1350 |
| drill chuck | drawbar | tapping assembly | toolbox & tools |
| halogen work lamp | milling vise | coolant system | chip tray |
| X axis mechanical automatic feed | |||

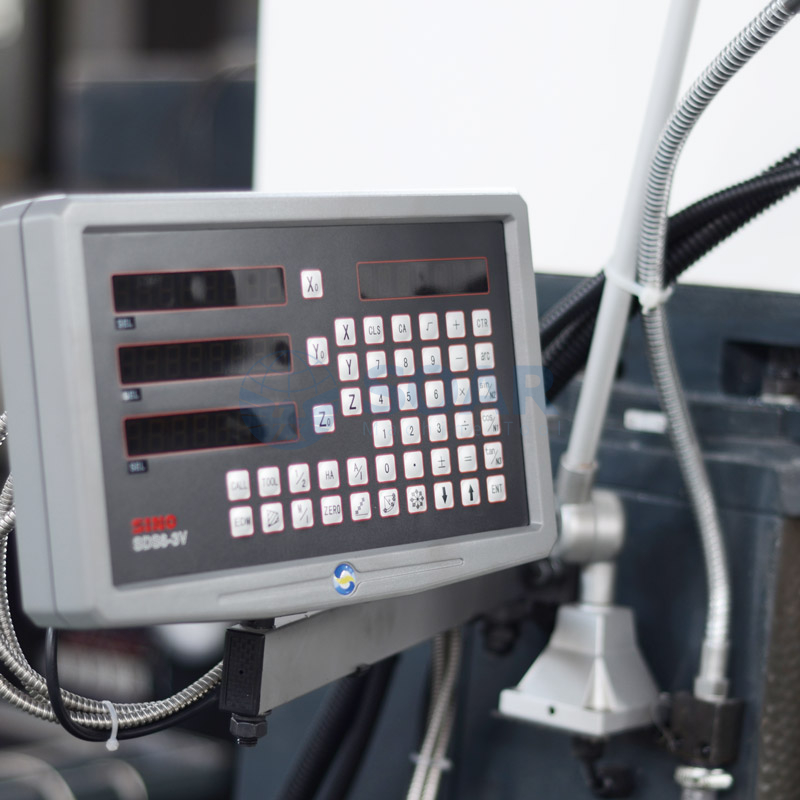

| keyless drill chuck | 58pcs clamping kits | digital readout | X,Y-axis electronic power feed |
| automatic spindle feed | |||
