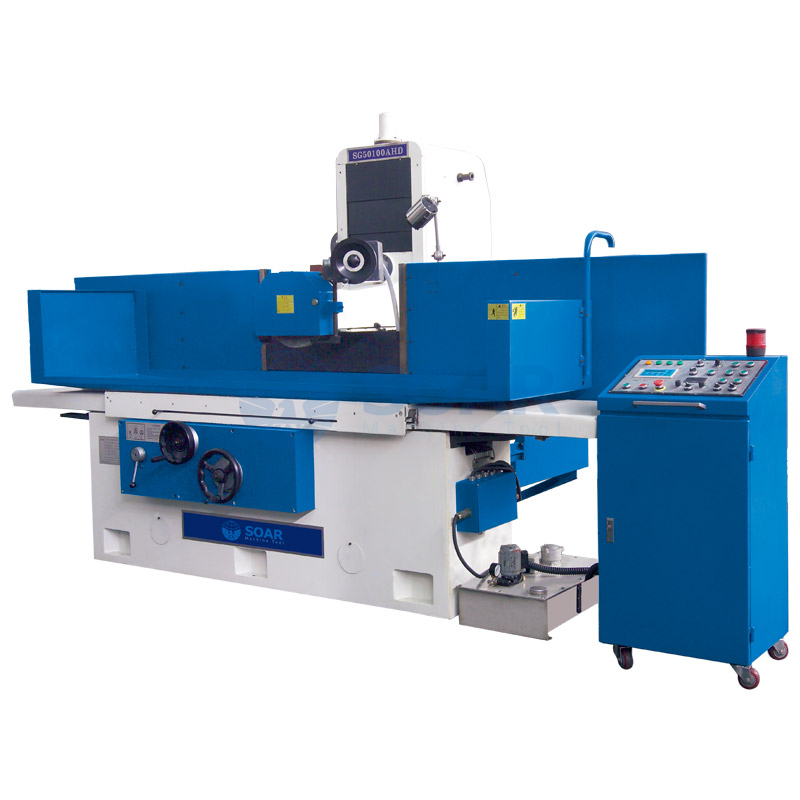

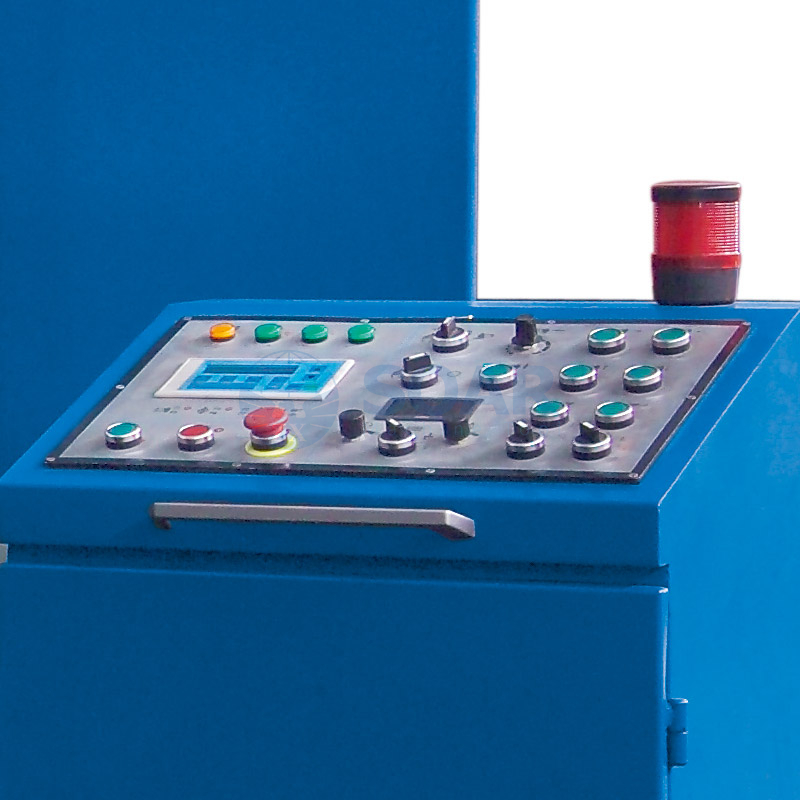

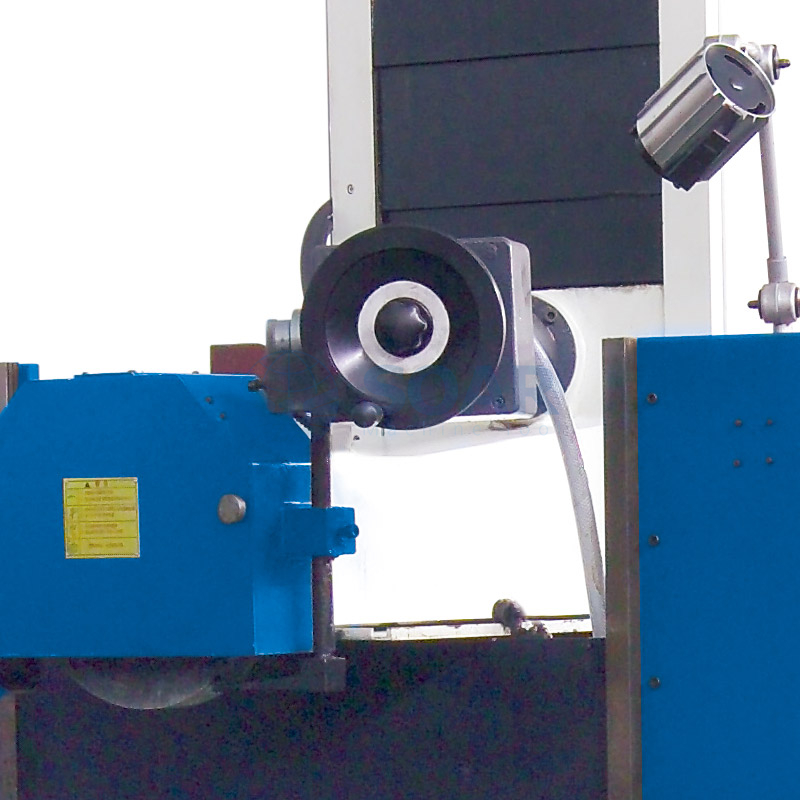

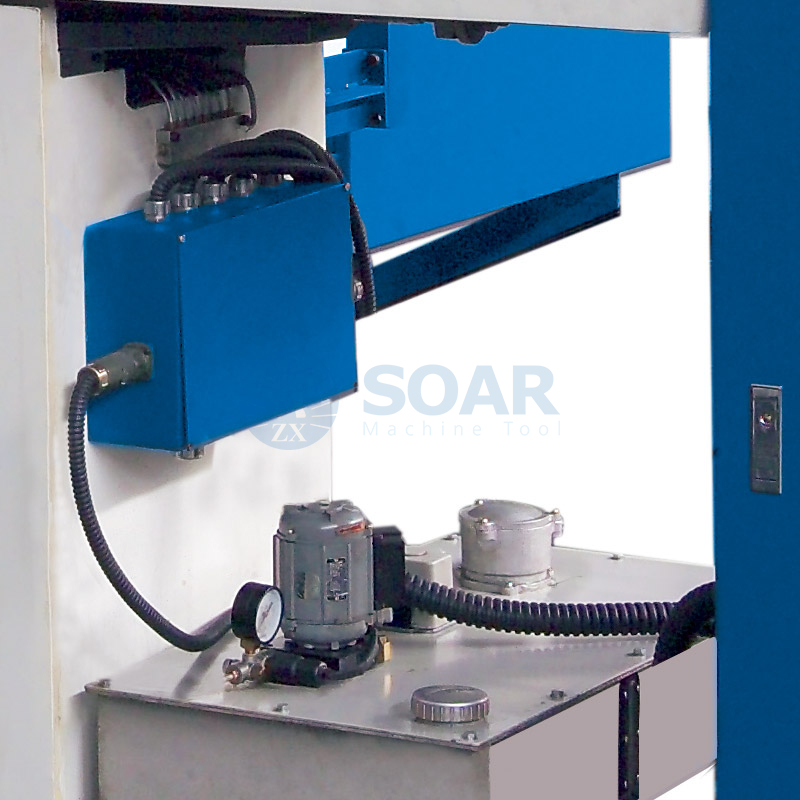

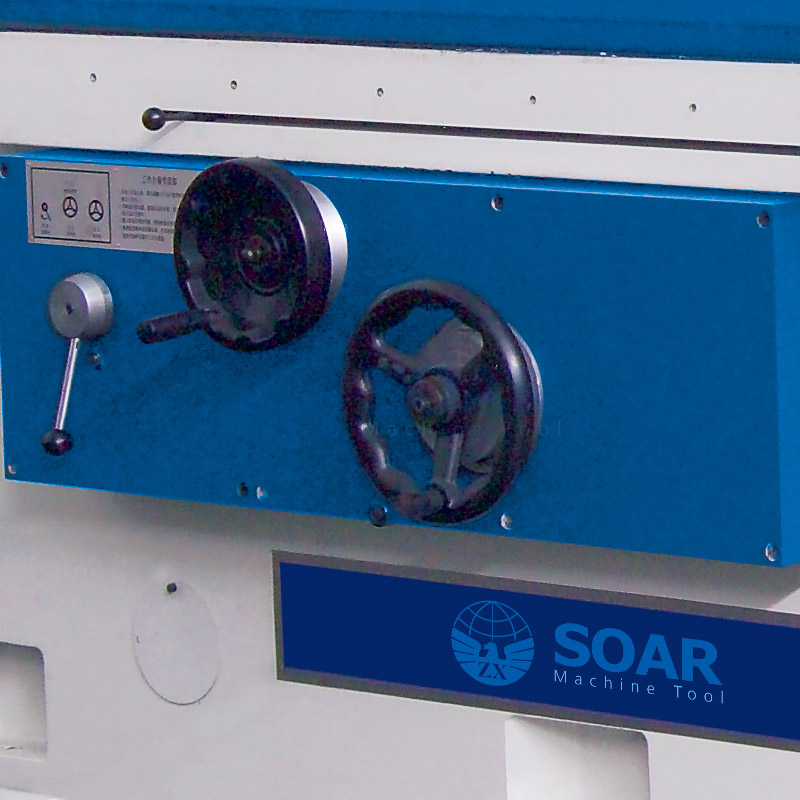

SG Series Column Moving Surface Grinder

Overview

· AHR: With rapid up & down, but without auto-feed.

· AHD: With rapid up & down and auto-feed.

Technical Parameters

Model No.		Unit	SG50100AHR/AHD	SG50160AHR/AHD	SG60120AHR/AHD	SG60160AHR/AHD	SG60220AHR/AHD
work table size		mm	500×1000	500×1600	610×1200	610×1600	610×2200
max. grinding(W×L)		mm	500×1000	500×1600	610×1200	610×1600	610×2200
max. distance from table to spindle center		mm	600	600	600	600	600
magnetic chuck size (optional equipment)		mm	500×1000×1	500×800×2	600×1000×1	600×800×2	600×1000×2
speed of table longitudinal movement		m/min	5~25	5~25	5~25	5~25	5~25
wheelhead cross movement	auto feed	mm/t	0.5~20	0.5~20	0.5~20	0.5~20	0.5~20
	rapid speed	m/min	1.25	1.25	1.25	1.25	1.25
	feed of handwheel	mm/div	0.02	0.02	0.02	0.02	0.02
wheelhead cross movement	auto feed	mm/t	-/ 0.005、0.01、0.015、0.02、0.03、0.04(only for AHD model)
	rapid feed	mm/min	230
	feed of handwheel	mm/div	0.002
wheel	speed	rpm	1450(50Hz)、1740(60Hz)
wheel	size(OD×W×ID)	mm	355×(20~50)×127
motor of spindle		Kw	7.5	7.5	7.5	7.5	7.5
max. loading capacity of table(include chuck)		Kg	700	800	970	1230	1690
total rated power		Kw	12	12	14	14	14
height of machine		mm	2390(include the packing base)
floor space(L×W)		mm	4700×2550	7120×2550	4740×2750	5340×2750	6740×2750
G.W.		Kg	5500	6000	6500	7000	8000

Standard Accessories

coolant tank	wheel dresserbase(without diamond pen)	flange and wheel extractor	standard grinding wheel
balancing arbor	balancing stand	working lamp	leveling wedge and founation bolt
luxurious electro magnetic chuck controller	PLC auto grinding controller(only for AHD model)

Optional Accessories

electro magnetic chuck	manual parallel wheel dresser	coolant tank with magnetic separator	coolant tank with paper filter
coolant tank with paper filter and magnetic separator
