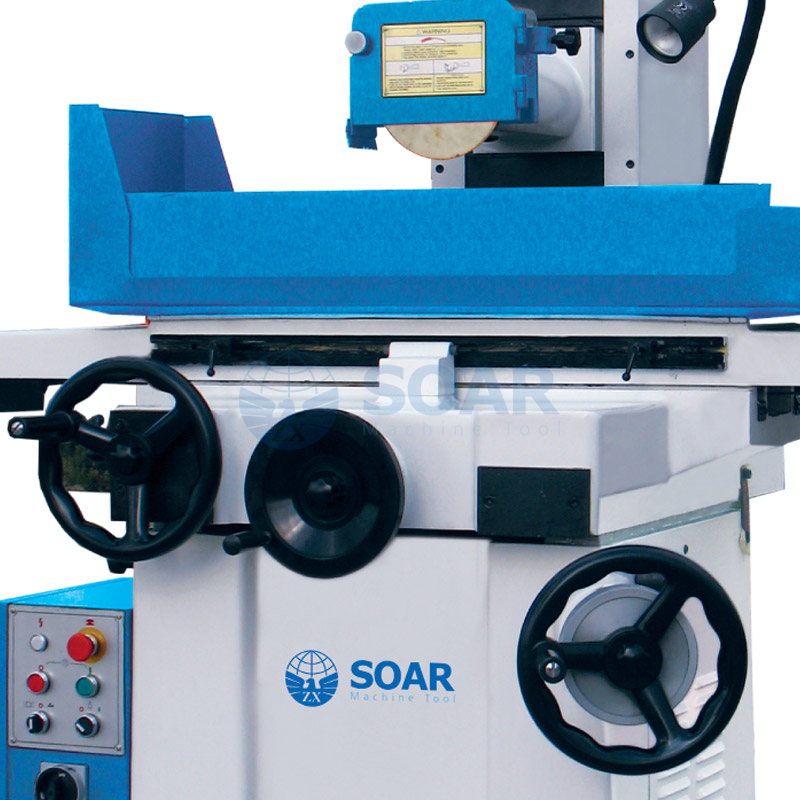

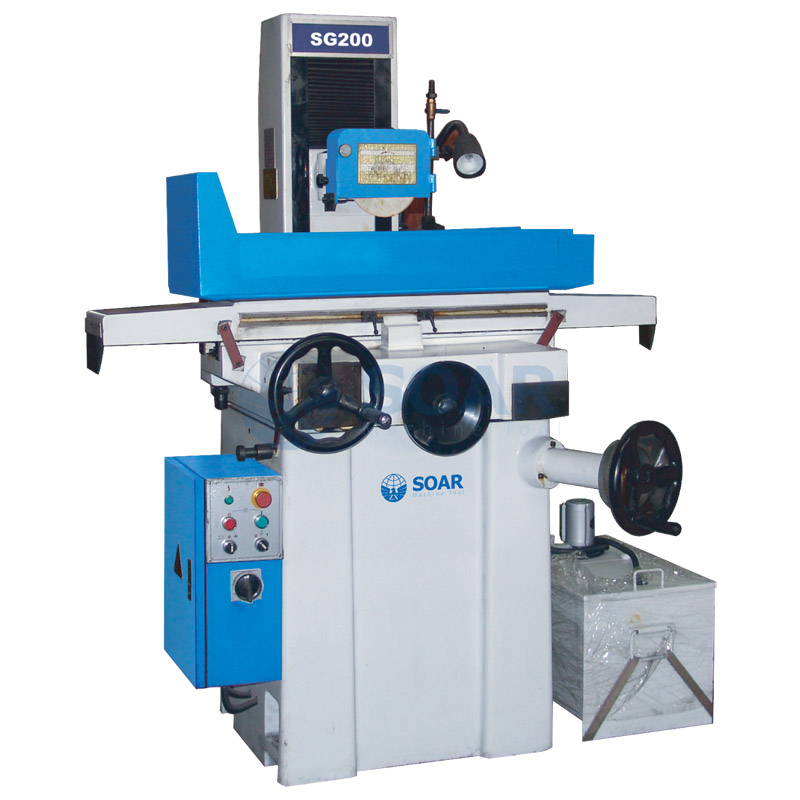

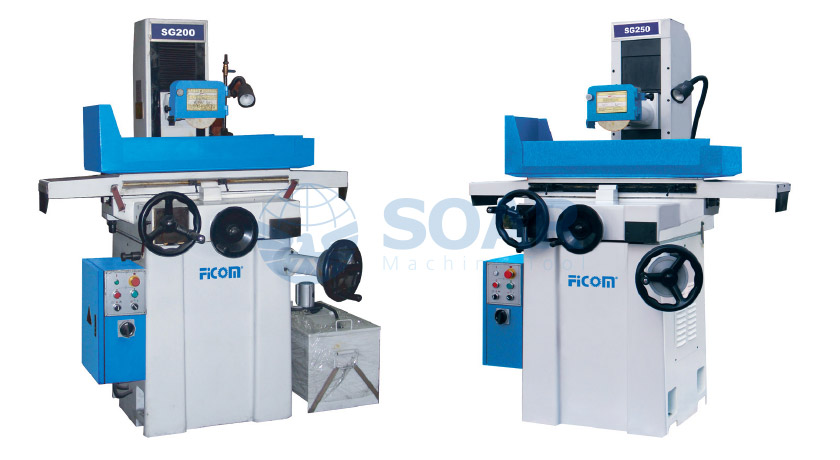

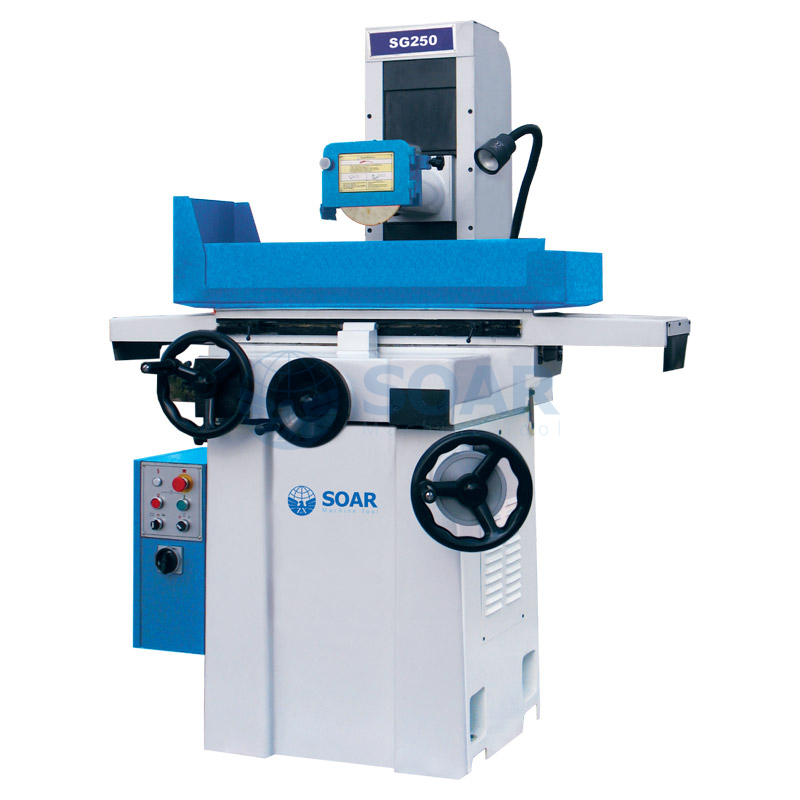

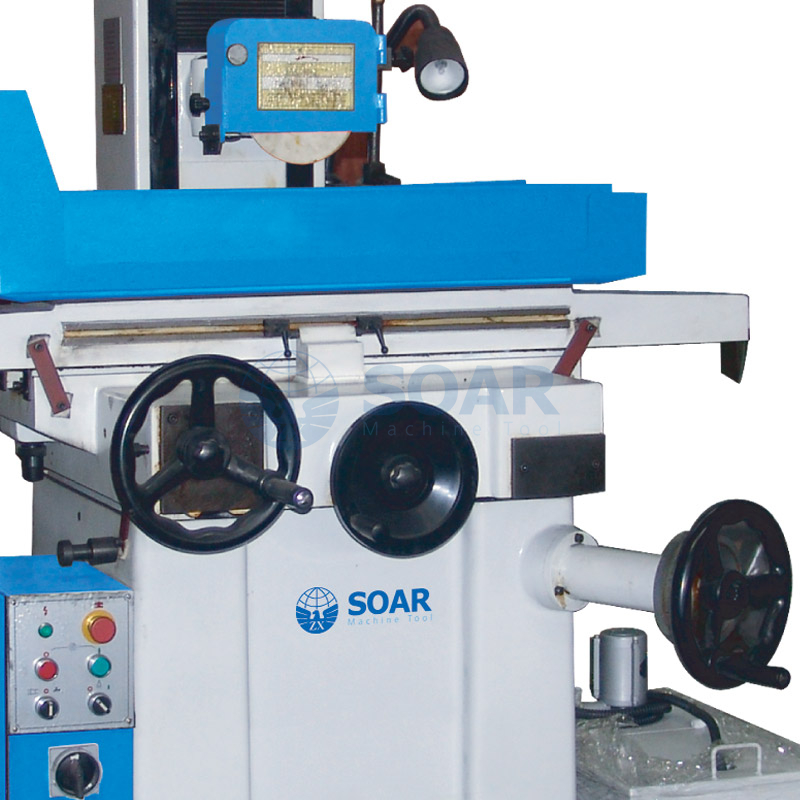

SG200/SG250
SOAR Machine
· Widely useful, grind various surface.
· Rolling ball guideway is used on longitudinal direction.
· Double V type guideways.
· Vertical handwheel is fixed on bed.
· Manual oil pump lubricates all moveable parts.
| Model No. | Unit | SG200 | SG250 |
| max. width to be ground | mm | 165 | 220 |
| max. length to be ground | mm | 470 | 520 |
| max. height to be ground | mm | 350 | 350 |
| work table size | mm | 155×460 | 200×520 |
| permanent magnetic chuck size | mm | 150×400 | 200×450 |
| max. longitudinal travel | mm | 500 | 570 |
| max. cross travel | mm | 200 | 250 |
| max. distance from spindle to table surface | mm | 450 | 450 |
| feed of vertical handwheel | per rev. | 2 | 2 |
| grinding wheel size(OD×W×ID) | mm | 200×20×31.75 | 200×20×31.75 |
| spindle speed | r/min | 3450(60Hz)2850(50Hz) | 3450(60Hz)2850(50Hz) |
| power of spindle head | Kw | 1.5 | 1.5 |
| max. load capacity | kg | 92 | 140 |
| packing size | mm | 1670×1557×1930 | 1670×1700×1985 |
| N.W. | Kg | 1000 | 1120 |
| wheel | balancing arbor | hoisting set | spanner |
| wheel chuck | wheel dresser | levelling screw and block | tool box and special wrench |
| halogen lamp | coolant system |
| permanent magnetic chuck | dust collector | wheel balancing stand | cooling and dust collecting equipment |
