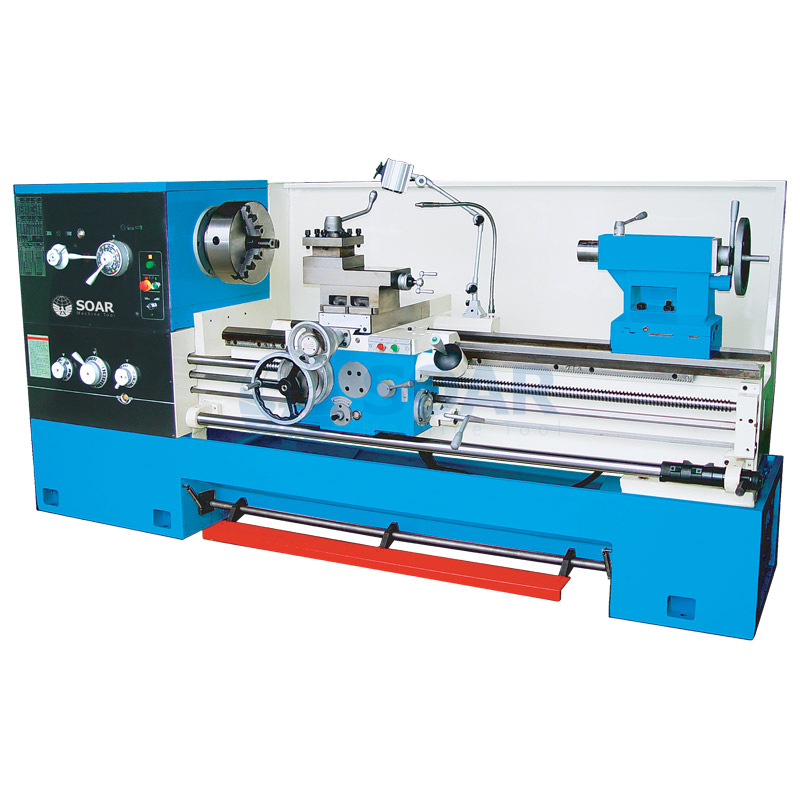

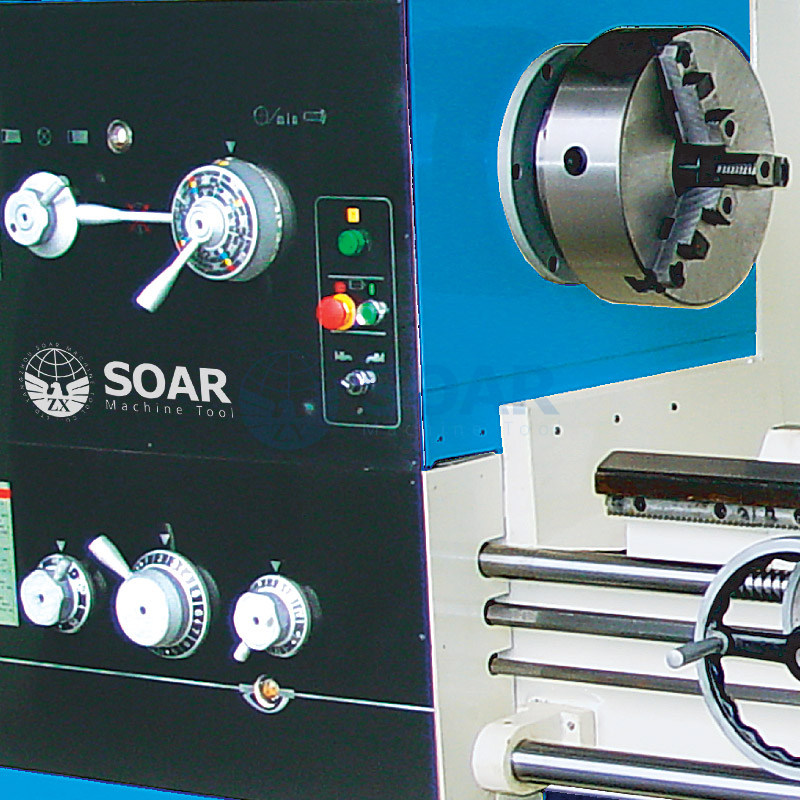

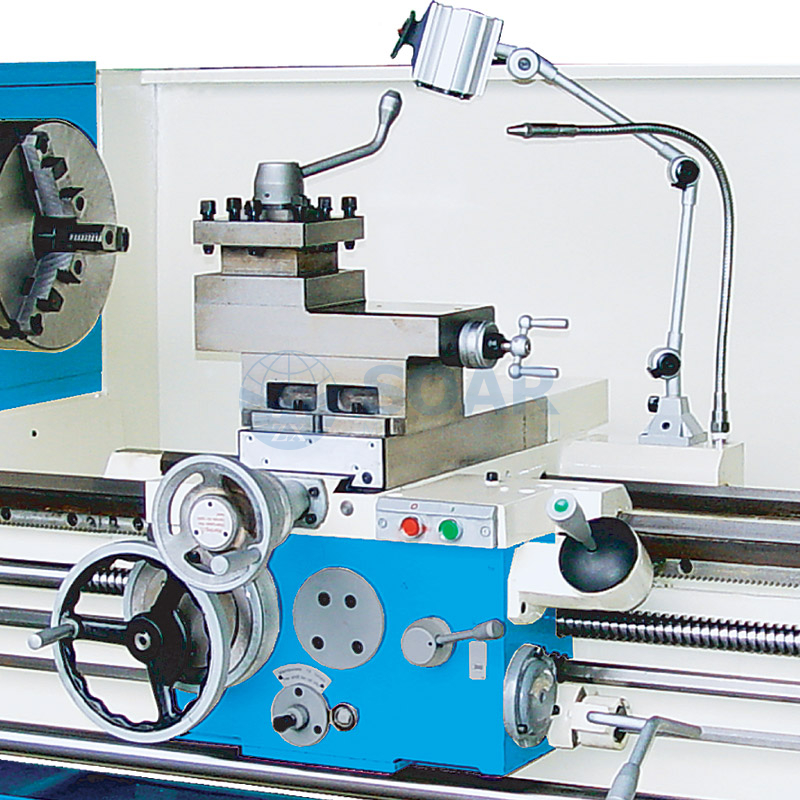

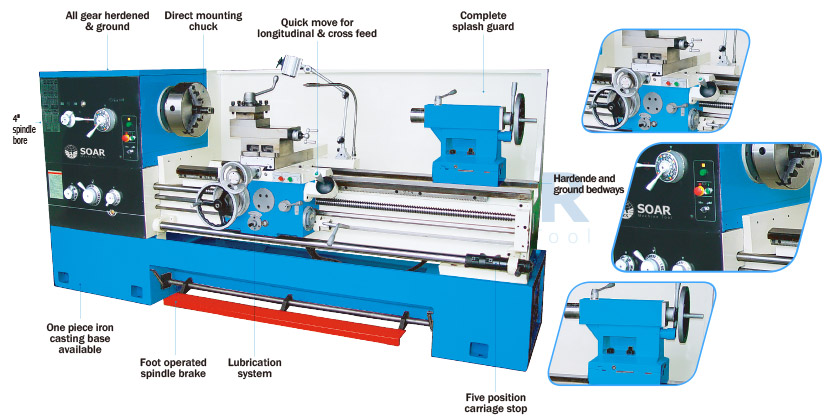

TR66
SOAR Machine
| Model No. | Unit | TR66 |
| distance between centers | mm | 1000/1500/2000/3000 (39.37"/59.06"/78.74"118.11") |
| swing over bed | mm | 660(25.98") |
| swing over carriage | mm | 420(16.54") |
| swing over gap | mm | 870(34.25") |
| spindle bore | mm | Ø105(4.13") |
| taper of spindle bore | mm | Ø113(4.45") 1:20 |
| spindle nose | D1-8 | |
| step of spindle speeds | steps | 12 |
| range of spindle speeds | rpm | 36-1600 |
| range of cross feeds | mm/r | 0.027-1.07 |
| range of longitudinal feeds | mm/r | 0.063-2.52 |
| range of inch threads/No. | 28-2T.P.I/26 | |
| range of metric threads/No. | mm | 1-14mm/22 |
| range of D.P. threads/No. | 4-56D.P./24 | |
| range of mould threads/No. | 0.5-7mm/18 | |
| rapid feed of cross traverse | m/min | 1.9 |
| rapid feed of longitudinal traverse | m/min | 4.5 |
| top slide travel | mm | 145(5.71") |
| cross slide travel | mm | 360(14.17") |
| max. size of tool(W×H) | mm | 25×25(0.98"×0.98") |

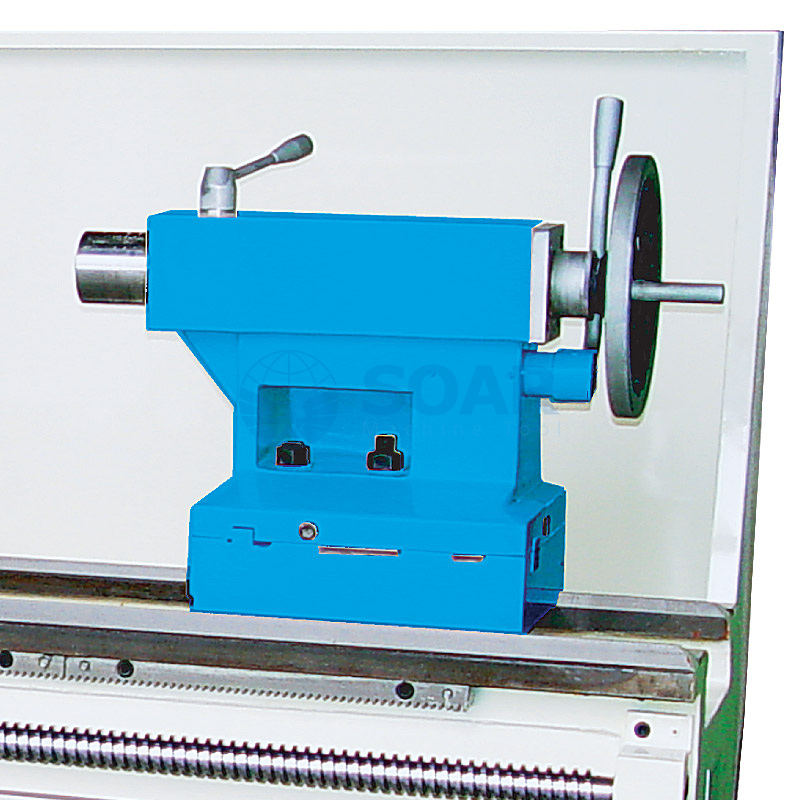

| tailstock quill travel | mm | 150(5.91") |
| tailstock quill diameter | mm | 75(2.95") |
| taper of tailstock quill | MT5 | |
| motor | kW | 7.5Kw/11Kw available |
| packing size | mm | 2500/3000/3500/4500×1100×1650 |
| N.W. | kg | 3200/3500/4000/4500 |
3 jaw chuck and adapter | 4 jaw chuck and adapter | face plate | steady rest |
| follow rest | oil gun | thread chasing dial | operation manual |
| one set of wrenches | 2 dead centers | sleeve | foot brake |
| coolant pump | halogen lamp | splash guard | micro carriage stop |
quick change tool post | driving plate | taper turning attachment | digital readout |
| Nr 12 standard for Brazil | one piece iron casting stand |
