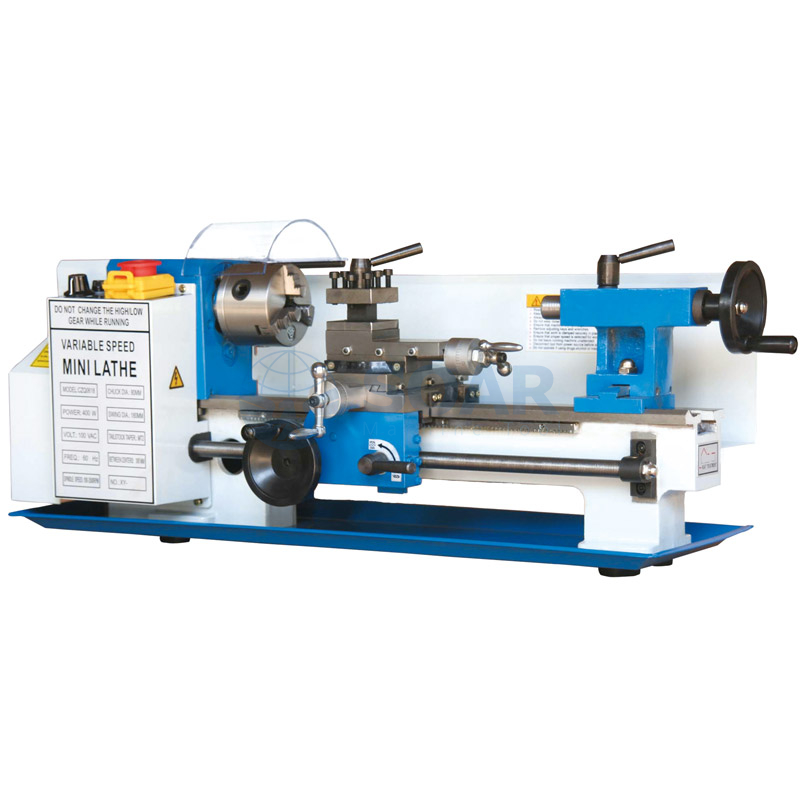

TU0618 / TU0618A Variable Speed Mini-lathe

· Induction harden bedway

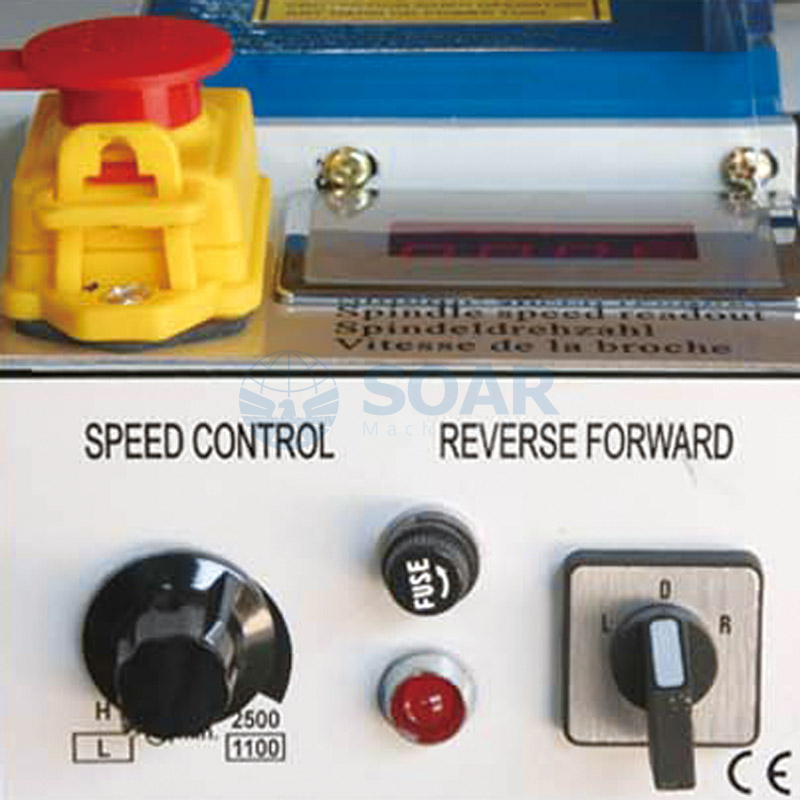

· Variable speed
· DC motor
Availability:
Quantity:
Inquire Add to Basket

  • TU0618 / TU0618A

  • SOAR Machine

Overview


TU0618主


Technical Parameters
Model No.

Unit

TU0618

TU0618A

distance between centers

mm

200/300/350(7.87"/11.81"/13.78")

200/300/350(7.87"/11.81"/13.78")

swing over bed

mm

180(7.09")

180(7.09")

spindle taper

MT3

MT3

chuck diameter

mm

80(3.15")

80(3.15")

spindle bore

mm

20(0.79")

20(0.79")

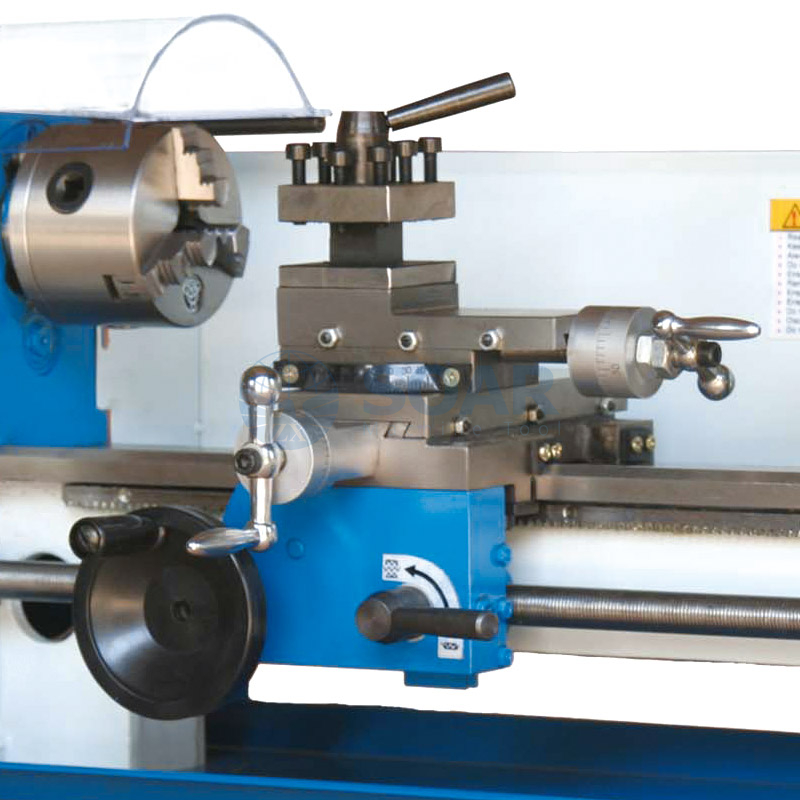

tool slide travel

mm

35(1.38")

35(1.38")

taper of tallstock quill

MT2

MT2

range of metric threads

mm

0.5~2.5(0.02"~0.10")

0.5~2.5(0.02"~0.10")

range of inch threads

TPL

12~52

12~52

cross slide travel

mm

65(2.56")

65(2.56")

spindle accuracy

mm

0.01

0.01

spindle speed

rpm

50~2500

100~250

vol./freq

230V/50Hz or 120V/60Hz

230V/50Hz or 120V/60Hz

motor

W

400

550

N.W.

kg

35/38/40

35/38/40

G.W.

kg

38/42/45

38/42/45

packing size

mm

660/760/810×305×370

660/760/810×305×370
Standard Accessories

3-jaw chuck Ø80/Chang gears

Centers MT2

Oil gun/Set of wrench





Optional Accessories

4-jaw chuck/Follow rest

Steady rest

Keyless chuck 1-13mm/B16
