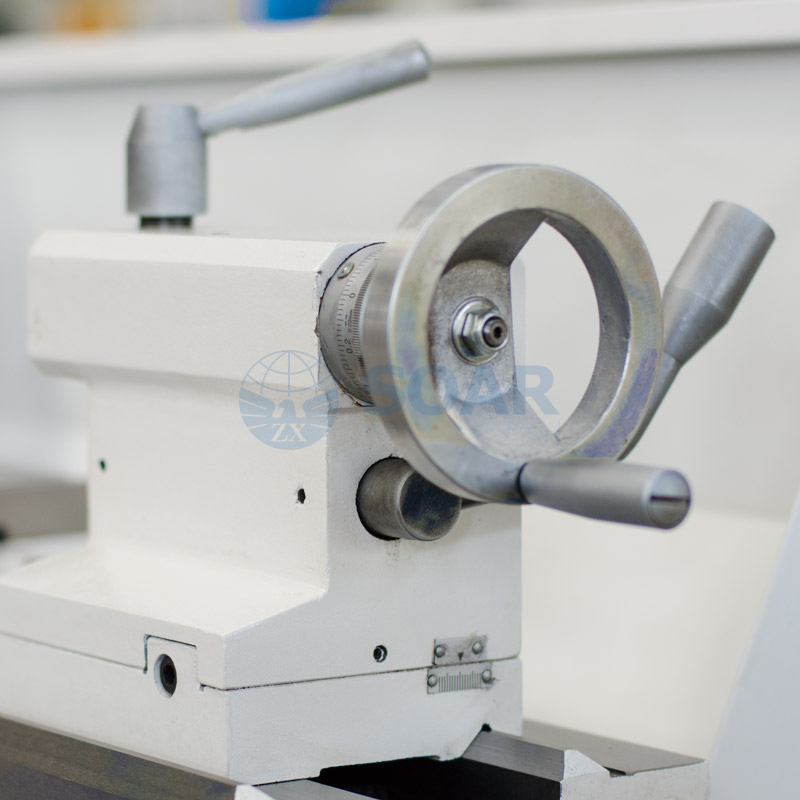

TU2907 / TU2907 Vario / TU3008 / TU3008 Vario
SOAR Machine
| Model No. | Unit | TU2907 | TU2907 Vario | TU3008 | TU3008 Vario |
swing over bed | mm | Ø290(11.42") | Ø290(11.42") | Ø300(11.81") | Ø300(11.81") |
swing over cross slide | mm | Ø165(6.50") | Ø165(6.50") | Ø180(7.09") | Ø180(7.09") |
admits between | mm | 700(27.56") | 700(27.56") | 800(31.50") | 800(31.50") |
center height | mm | 145(5.71") | 145(5.71") | 150(5.91") | 150(5.91") |
width of bed | mm | 180(7.09") | 180(7.09") | 182(7.17") | 182(7.17") |
spindle bore | mm | Ø26(1.02") | Ø26(1.02") | Ø38(1.50") | Ø38(1.50") |
spindle taper | MT4 | MT4 | MT5 | MT5 | |
3-jaw chuck | mm | Ø125(4.92") | Ø125(4.92") | Ø160(6.30") | Ø160(6.30") |
range of spindle speed | rpm | 150-2000 | 150-2250 | 150-2000 | 30-3000 |
compound rest travel | mm | 60(2.32") | 60(2.32") | 65(2.56") | 65(2.56") |
cross slide travel | mm | 160(6.30") | 160(6.30") | 180(7.09") | 180(7.09") |
max. section of tool | mm | 18×18 (0.71"×0.71") | 18×18 (0.71"×0.71") | 18×18 (0.71"×0.71") | 18×18 (0.71"×0.71") |
threads metric pitches | mm | 0.2-3.5 (0.01"-0.14") | 0.2-3.5 (0.01"-0.14") | 0.2-3.5 (0.01"-0.14") | 0.2-3.5 (0.01"-0.14") |
threads imperial pitches | 8-56TPI | 8-56TPI | 8-56TPI | 8-56TPI | |
quill diameter | mm | Ø38(1.50") | Ø38(1.50") | Ø38(1.50") | Ø38(1.50") |
quill travel | mm | 70(2.76") | 70(2.76") | 70(2.76") | 70(2.76") |
quill taper | MT3 | MT3 | MT3 | MT3 | |
main motor power | kW | 1.1 | 1.5 | 1.5 | 2.2 |
overall dimension(L×W×H) | mm | 1320×605×405 | 1320×605×405 | 1420×705×575 | 1420×705×575 |
packing size(L×W×H) | mm | 1370×660×440 | 1370×660×440 | 1500×720×690 | 1500×720×690 |
N.W./G.W. | kg | 260/290 | 260/290 | 260/290 | 260/290 |

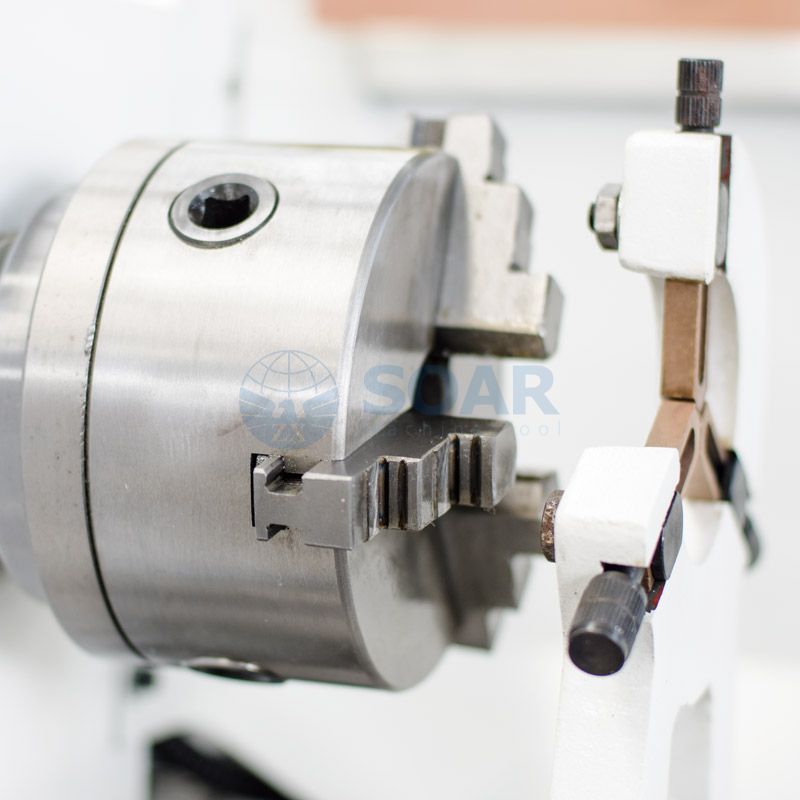

3-jaw chuck | Dead center MT1 | Change gears kit | Hexagon wrench |
Spanner | Splash guard | Chip tray |

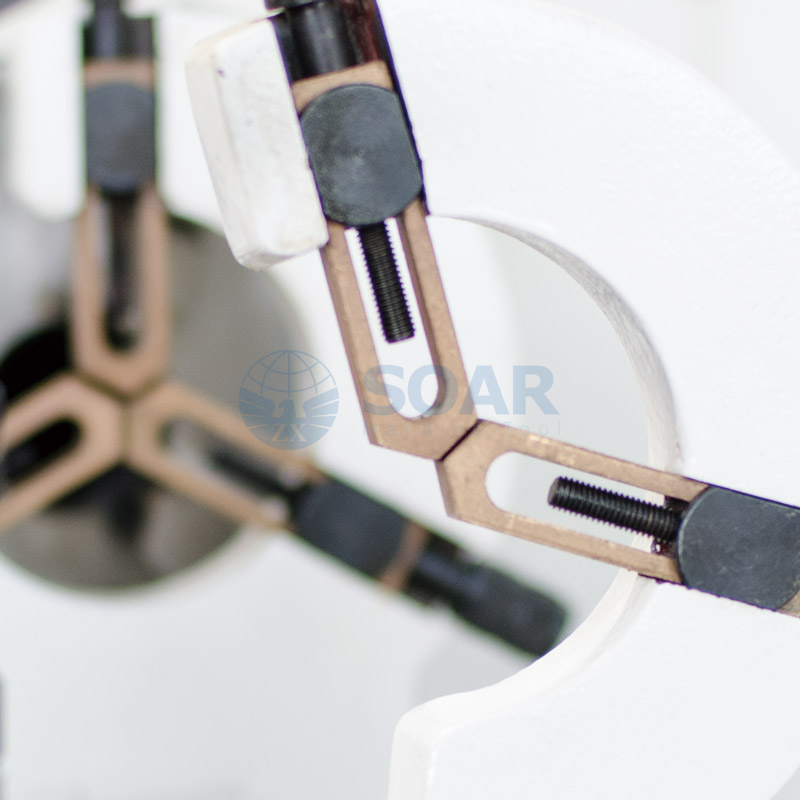

Steady rest | Follow rest | Turning tools 8×8mm | Live center mt1 |
er16 collet | er16 collet chuck | Face plate 100mm | 4-jaw chuck |
| Back plate | Oil gun |
