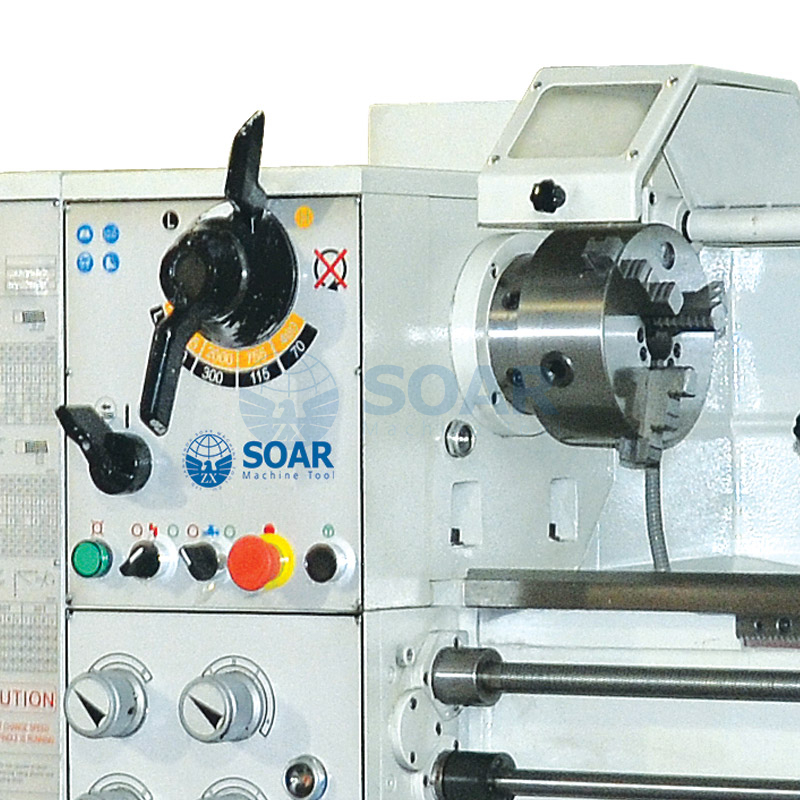

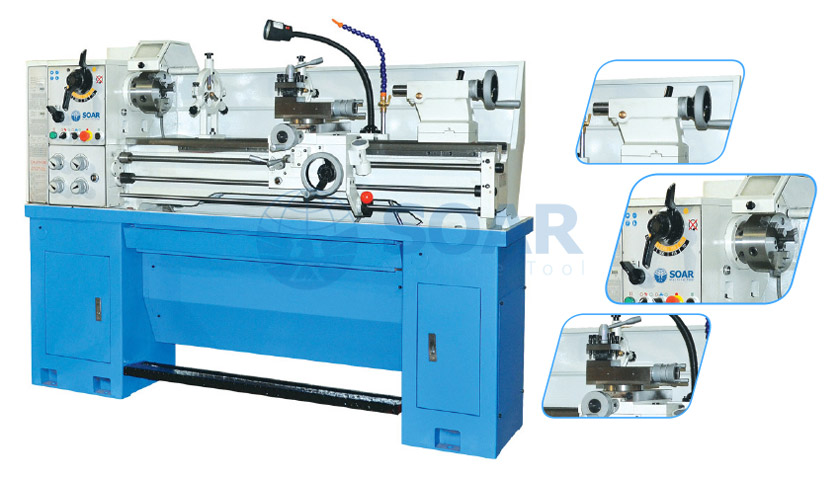

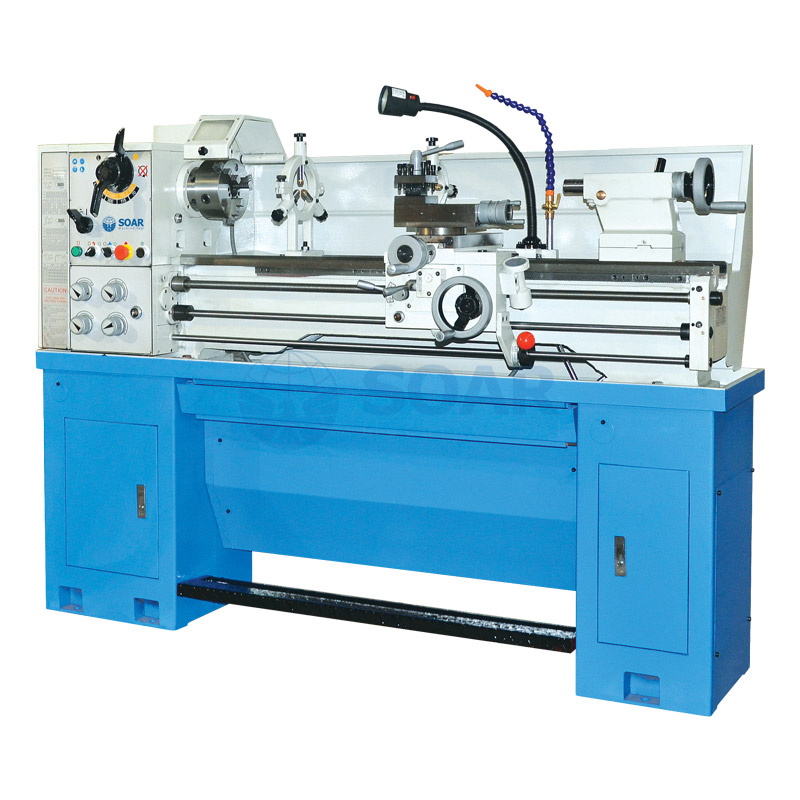

TU3310A / TU3610A / TU3610B
SOAR Machine
Model No. | Unit | TU3310A / TU3610A | TU3610B |
| distance between centers | mm | 1000(39.37") | |
| swing over bed | mm | 330(13.00")/360(14.17") | |
| swing over gap | mm | 476/491(18.74"/19.33") | |
| swing over cross slide | mm | 198/212(7.80"/8.35") | |
| bed width | mm | 187(7.36) | |
| taper of spindle bore | MT5 | ||
| spindle nose | D1-4 | D1-5 | |
| spindle bore | mm | 38(1.50") | 52(2.05") |
| step of spindle speeds | steps | 8/16(optional) | |
| range of spindle speeds | rpm | 70-2000(35-2000 optional) | |
| range of cross feeds | mm/r | 0.018-0.238 | |
| range of longitudinal feeds | mm/r | 0.078-1.044 | |
| range of inch threads | 34 NOS. 4-56 T.P.I(36 NOS. 8-112 T.P.I available) | ||
| range of metric threads | mm | 26 NOS. 0.4-7(28NOS. 0.5-5 available) | |

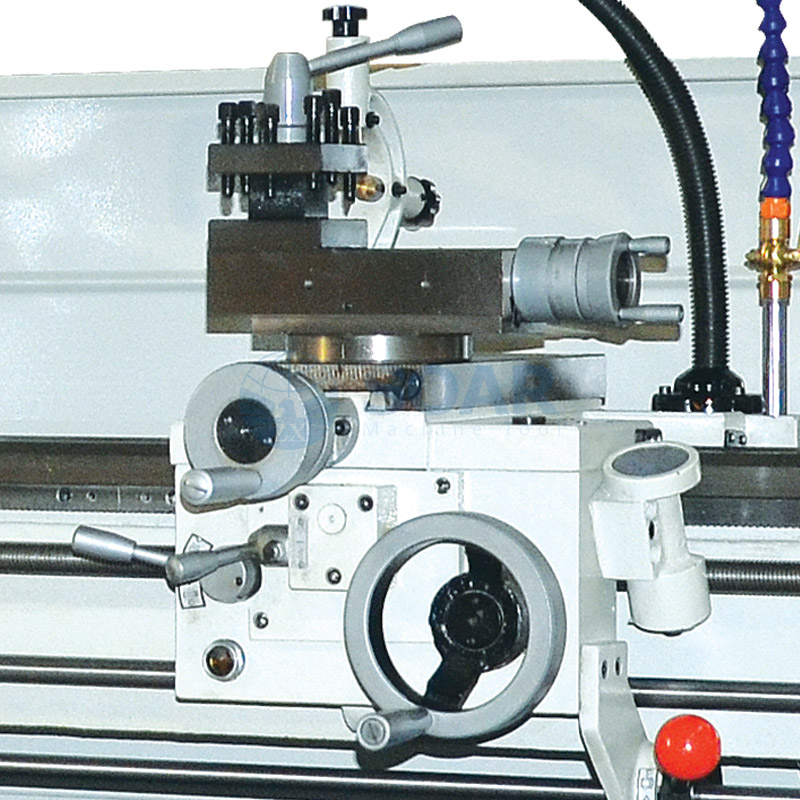

| top slide travel | mm | 76(3.00") | |
| cross slide travel | mm | 175(6.89") | |

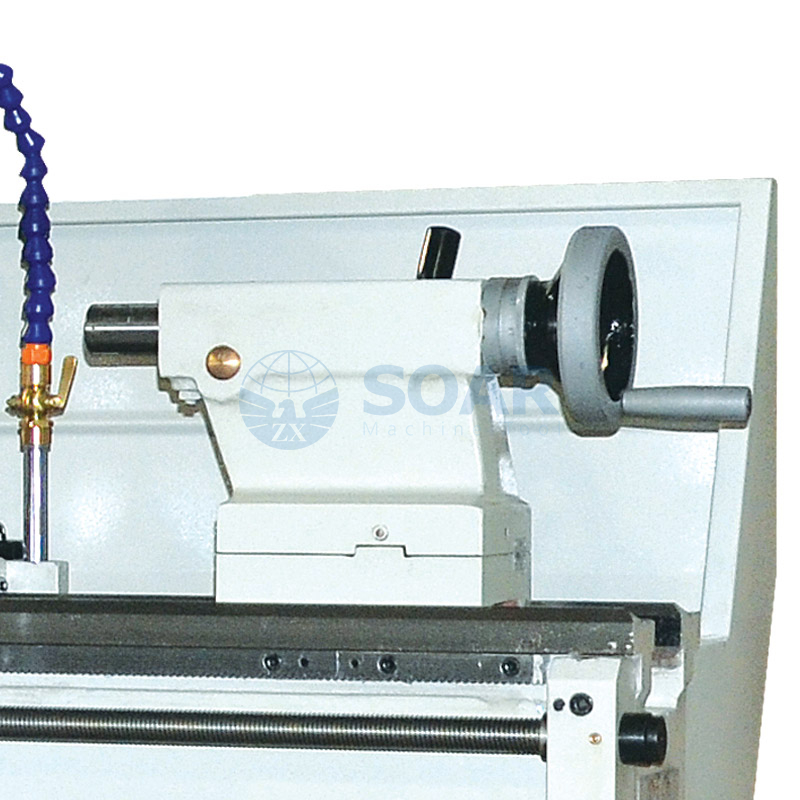

| tailstock quill travel | mm | 100(3.94") | |
| taper of tailstock quill | MT3 | ||
| motor | kW | 1.5 | |
| packing size | mm | 1700/1930×760×1450 | |
| N.W./G.W. | kg | 540/560 580/660 | |
