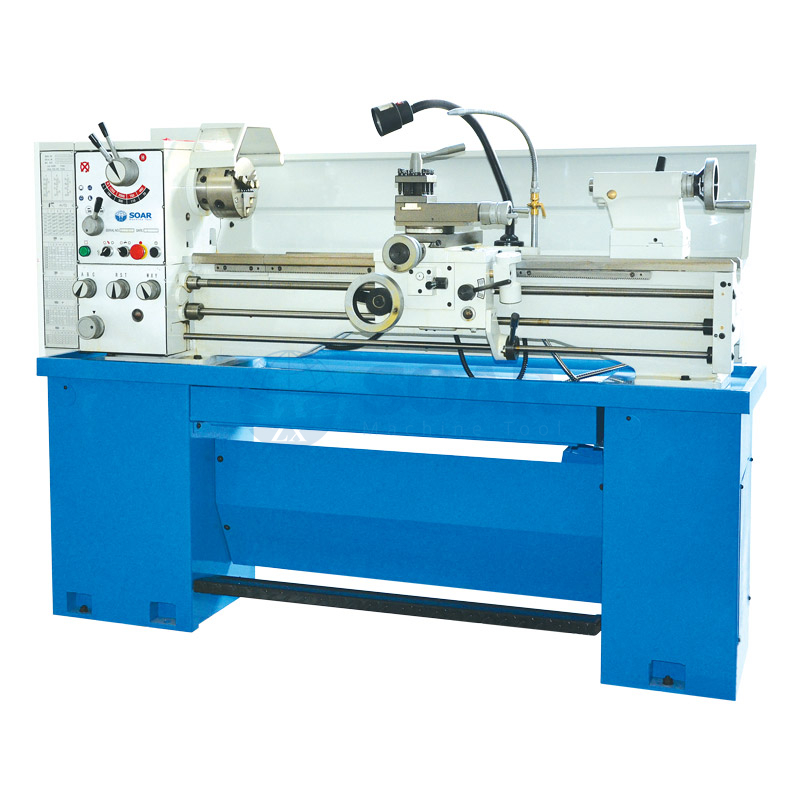

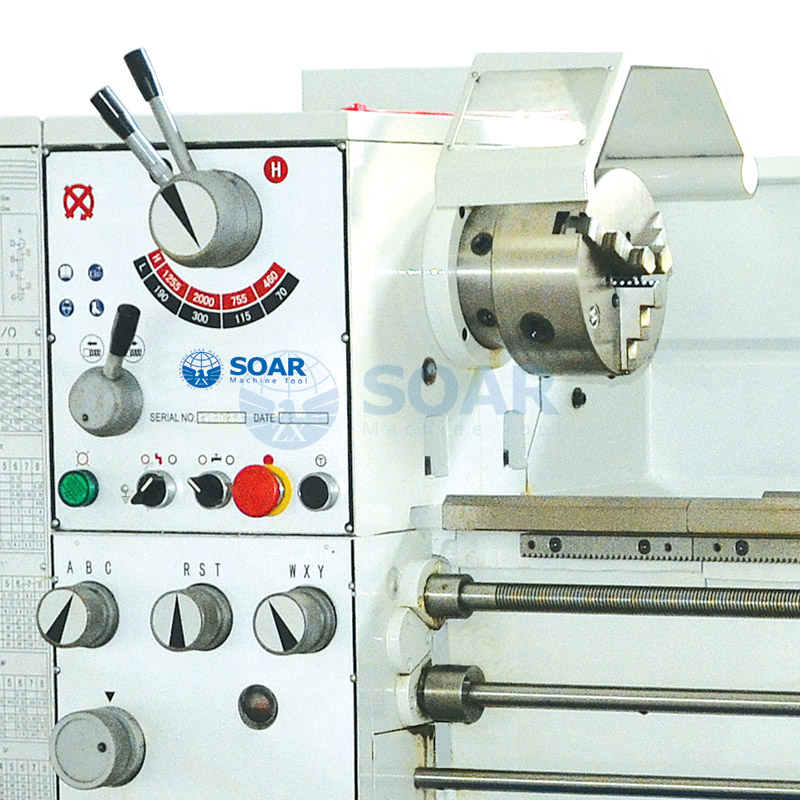

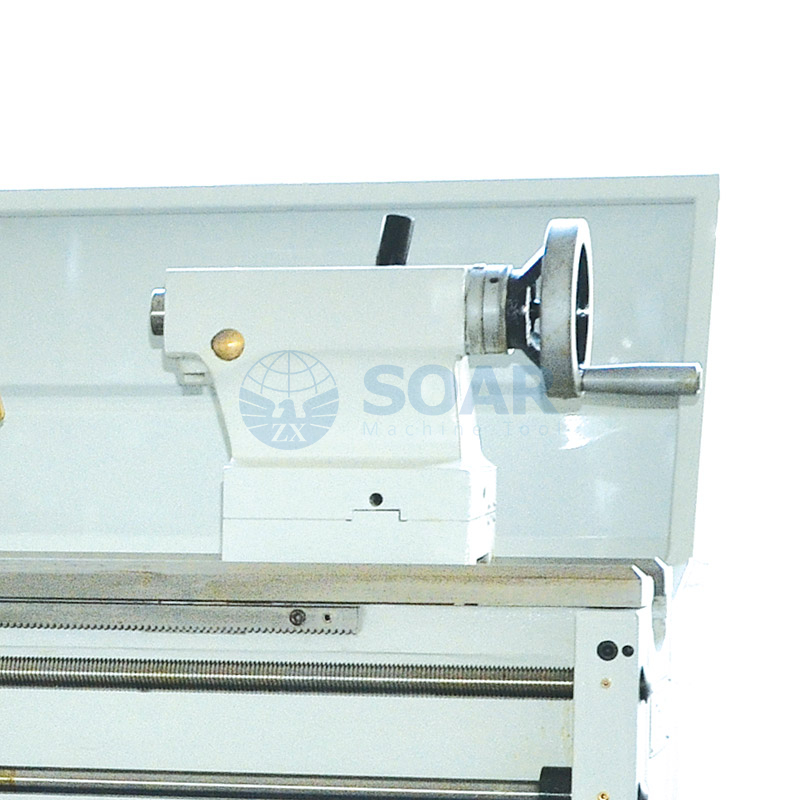

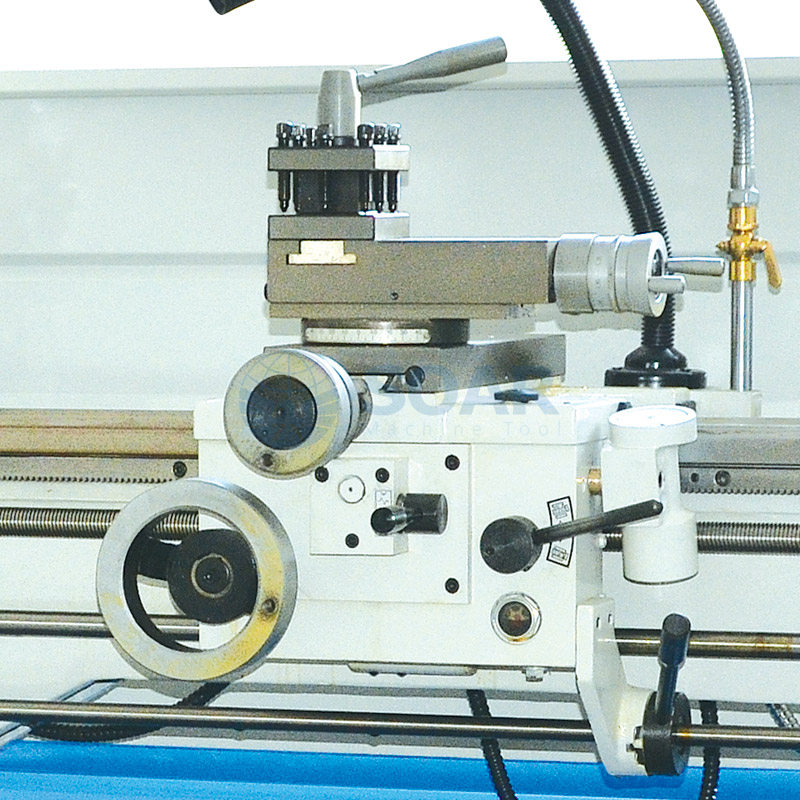

TU3310D / TU3610D Precision Gearhead Lathe

Overview

· No change gear in tool box.

· The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametral thread and module thread.

· Minimum Cross feed 0.01mm/rev, Minimum Longitudinal feed 0.046mm/rev.

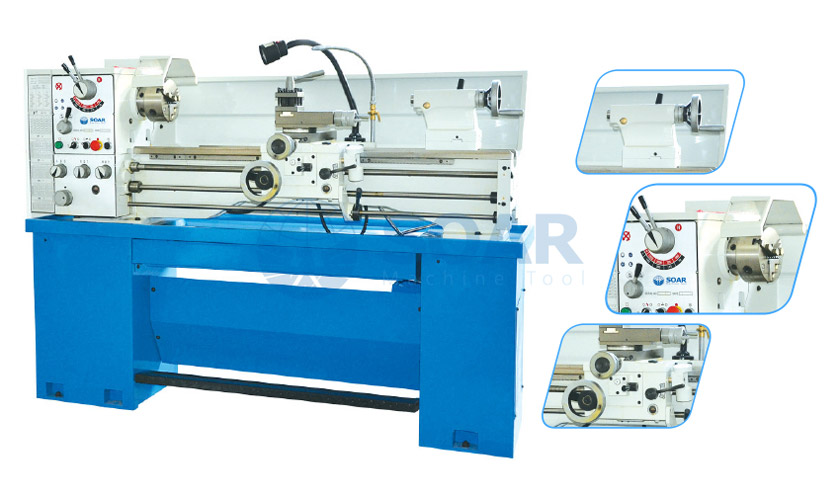

TU3310

Technical Parameters

Model No.	Unit	TU3310D	TU3610D
swing over bed	mm	330(13")	360(14")
swing over cross slide	mm	198(7-25/32")	224(8-13/16")
swing in gap diameter	mm	476(18-3/4")	502(19-3/4")
length in gap	mm	210(8-1/4")
center height	mm	166(6-1/2")	179(7")
distance between centers	mm	750(30") or 1000(40")
spindle bore	mm	38(1-1/2") or 40(1-9/16")
spindle nose		D1-4 or D1-5
taper in nose		No5 morse
speeds number		8
speeds range	r/min	70-2000
cross slide travel	mm	170(6-11/16")
compound rest travel	mm	95(3-9/16")
lead screw thread		8T.P.I. or 3mm pitch
feed rod diameter	mm	19(3/4")
cutting tool max section	mm	16×16(5/8"×5/8")
threads imperial pitches		42 Nos. 4-112T.P.I
threads metric pitches		44 Nos. 0.1-7mm
threads diametral pitches		25 Nos. 16-112DP
threads module pitches		34 Nos. 0.1-1.75MP
longitudinal feeds imperial		24 Nos. 0.00168-0.1175"/rev
longitudinal feeds metric		24 Nos. 0.046-3.249 mm/rev
cross feeds imperial		32 Nos. 0.00046-0.03231"/rev
cross feeds metric		24 Nos. 0.01-0.703 mm/rev
quill diameter	mm	32(1-1/4") or 42(1-21/32")
quill travel	mm	100(3-15/16")
quill taper		MT3
main motor power	Kw	1.5 (2HP)
coolant pump power	W	40 (1/16HP)
packing size	mm	1680×760×1530cm(750mm) or 1930×760×1530(1000mm)
N.W./G.W.	Kg	510/630(750mm) or 540/645(1000mm)

Standard Accessories

Optional Accessories

quick change tool post	turning tools	taper turning attachment	digital readout
leadscrew cover	collet attachment	chuck guard
