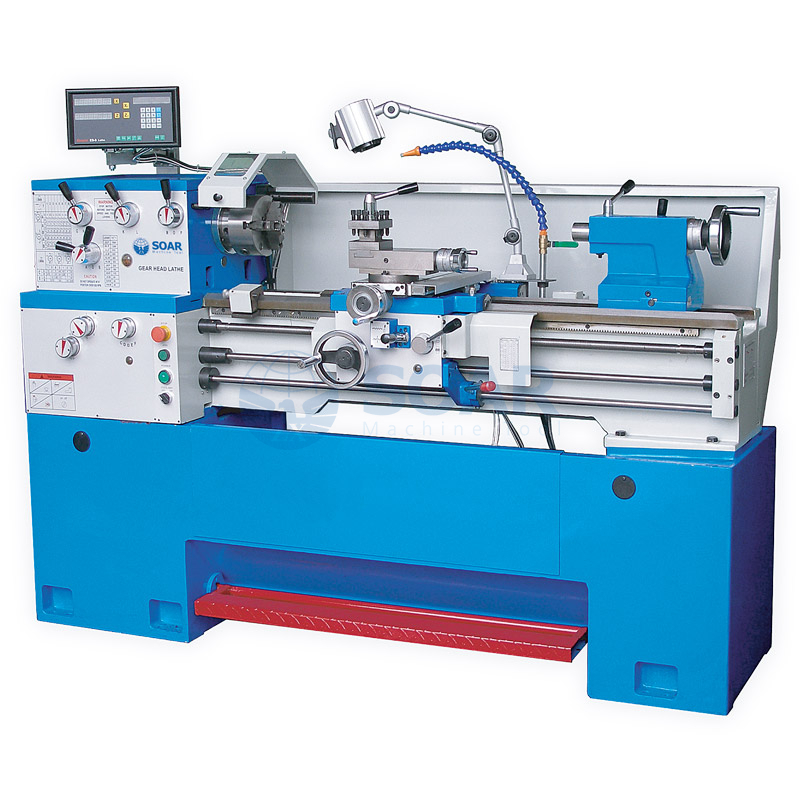

TU3610K / TU4010K Gear Head Lathe

· Induction hardened,precision ground V-way bed.
· D1-4 spindle is supported by high quality tapered roller bearing.
· 12 steps of spindle speeds are available.
· High precision directly mounting chuck.
· Gap bed section provides for larger diameter work.
· Gearbox has large feed and threading functions.

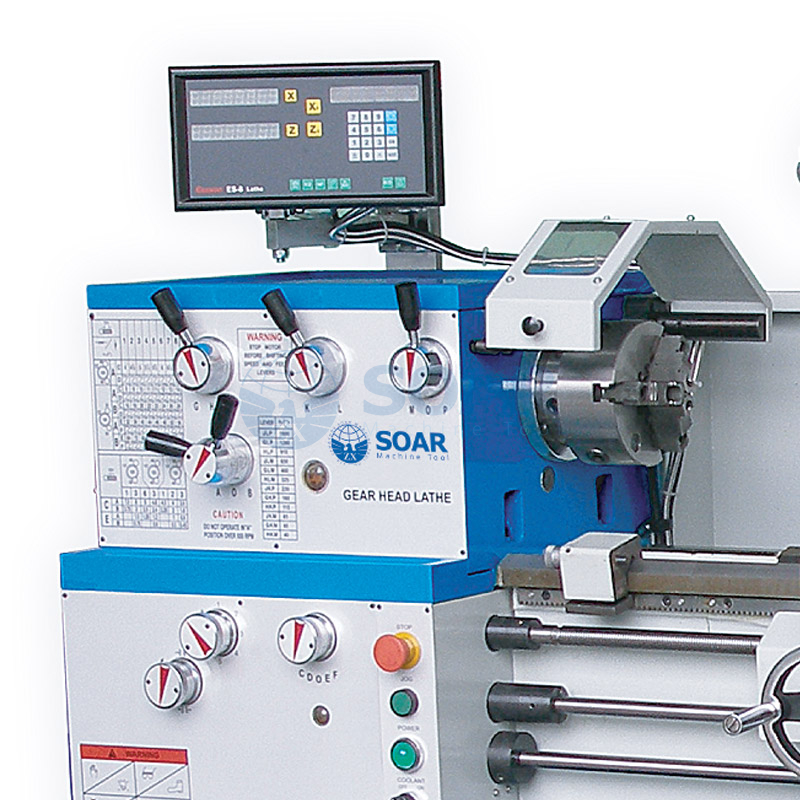

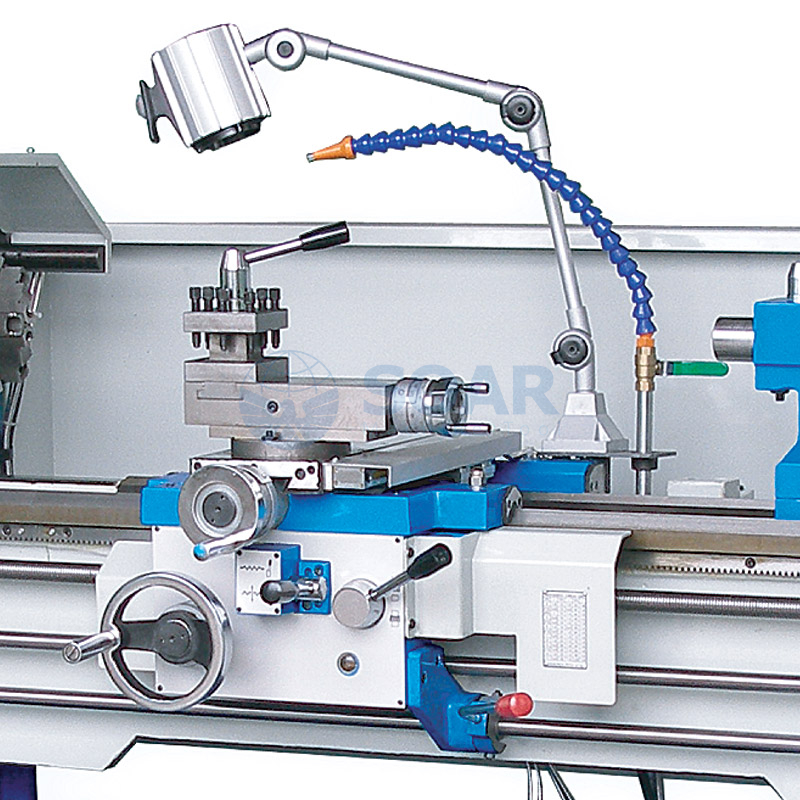

· Carriage mounted spindle control lever.
· Adjustable gibs for slideways.
· Automatic feed and threading are fully interlocked.

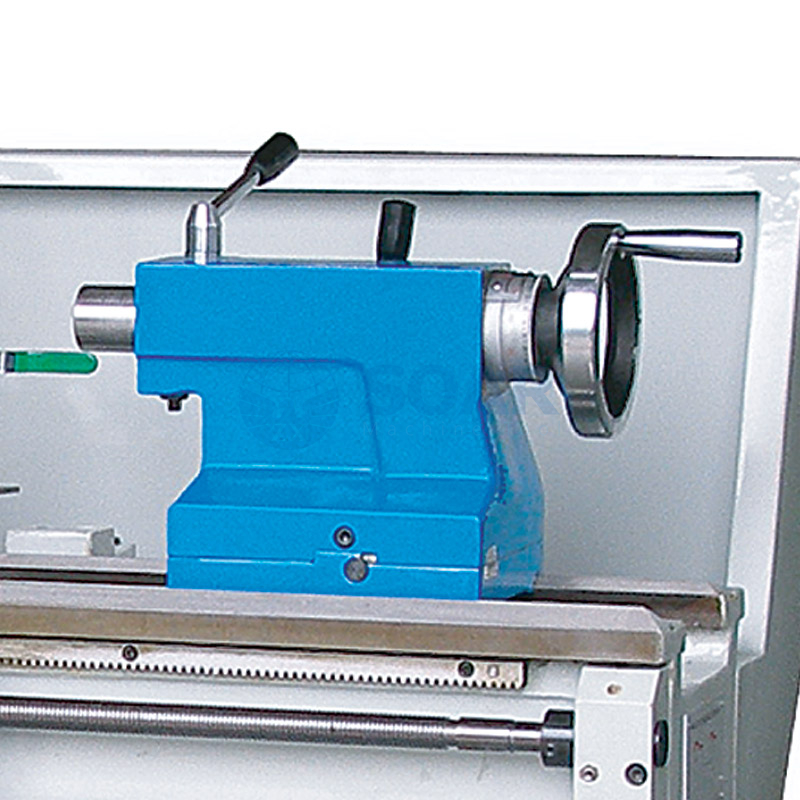

· Tailstock may be offset for turning tapers.
· Super width bedway.
· Equipped with emergency stop button.

Availability:

Quantity:



Inquire Add to Basket

Model:
TU3610K / TU4010K
Brand:
SOAR Machine

Product Description

Overview

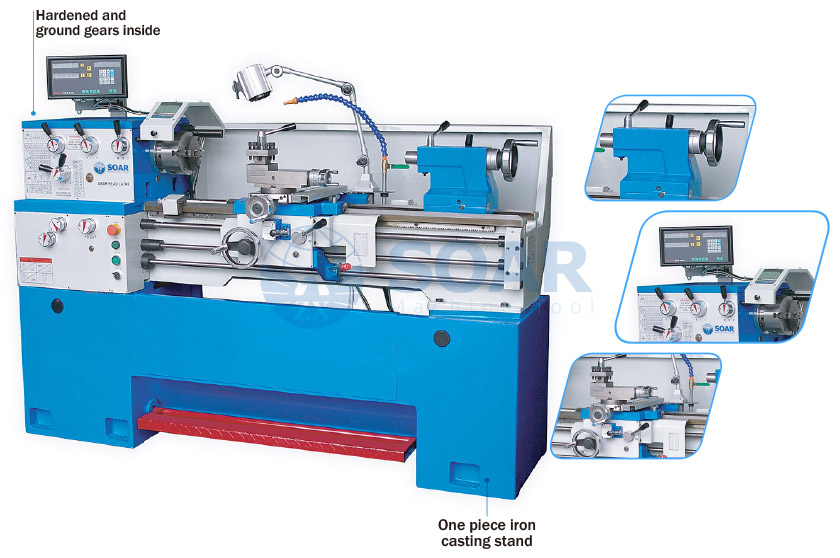

1440K-详情

Technical Parameters

Model No.	Unit	TU3610K	TU4010K
distance between centers	mm	1000/1500mm
swing over bed	mm	356mm
swing over gap	mm	508mm
swing over cross slide	mm	210mm
bed width	mm	260mm
taper of spindle bore		MT5
spindle nose		D1-4
spindle bore	mm	40mm
step of spindle speeds	steps	12
range of spindle speeds	rpm	40-1800rpm
range of cross feeds	mm/r	0.024-0.359mm/r
range of longitudinal feeds	mm/r	0.043-0.653mm/r
range of inch threads		4-56T.P.I
range of metric threads	mm	0.4-7mm
top slide travel	mm	92mm
cross slide travel	mm	185mm
tailstock quill travel	mm	120mm
taper of tailstock quill		MT3
motor	Kw	2.4Kw
packing size	mm	1990/2490×760×1450mm
N.W.	Kg	996/1100Kg

Standard Accessories

3 jaws & 4 jaws chuck	face plate	steady rest	follow rest
halogen work lamp	coolant system	foot brake	toolbox & tools
micro carriage stop	one piece casting stand

Optional Accessories

quick change tool post	turning tools	taper turning attachment	digital readout
collet attachment	leadscrew cover
